Ozone Environmental Testing Machine Rubber Ozone Stability Accelerate Aging Test Chamber Standard RT+10~+80℃ ASTM1171

Ozone Environmental Testing Machine Rubber Ozone Stability Accelerate Aging Test Chamber Standard RT+10~+80℃  ASTM1171
Ozone Environmental Testing Machine Rubber Ozone Stability Accelerate Aging Test Chamber Standard RT+10~+80℃  ASTM1171
Ozone Environmental Testing Machine Rubber Ozone Stability Accelerate Aging Test Chamber Standard RT+10~+80℃  ASTM1171 Ozone Environmental Testing Machine Rubber Ozone Stability Accelerate Aging Test Chamber Standard RT+10~+80℃  ASTM1171 Ozone Environmental Testing Machine Rubber Ozone Stability Accelerate Aging Test Chamber Standard RT+10~+80℃  ASTM1171 Ozone Environmental Testing Machine Rubber Ozone Stability Accelerate Aging Test Chamber Standard RT+10~+80℃  ASTM1171

Large Image :  Ozone Environmental Testing Machine Rubber Ozone Stability Accelerate Aging Test Chamber Standard RT+10~+80℃ ASTM1171

Product Details:
Place of Origin: China
Brand Name: lixian
Certification: CE
Model Number: HZ-2018
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiate
Packaging Details: wood
Delivery Time: 7 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: negotiate

Ozone Environmental Testing Machine Rubber Ozone Stability Accelerate Aging Test Chamber Standard RT+10~+80℃ ASTM1171

Description
Model: HZ-2018 Inside Size: 500*500*600mm
Temprature Range: Standard RT+10~+80℃ / 5~100℃ Option Meet Standards: JIS K 6259 ASTM1149 ASTM1171
Material: Stainless Steel Ozone Concentration: 0~1000pphm Adjustable
Application: Rubber Industry,Machinery Parts,Auto Part Dimensions: Customer Required,Customized Sizes
Service: OEM\ODM Standard: GB ASTM AISI DIN BS,DIN,BS,ASTM,ISO
Certifications: CE, RoHS, ISO 9001 Warranty: 1 Year
High Light:

Rubber Aging Test Chamber

,

Environmental Aging Test Chamber

,

ASTM1171 Aging Test Chamber

Ozone Environmental Testing Machine Rubber Ozone Stability Accelerate Aging Test Chamber Standard RT+10~+80℃ ASTM1171

Ozone-resistance testing machine (New) HZ-2018.pdf...

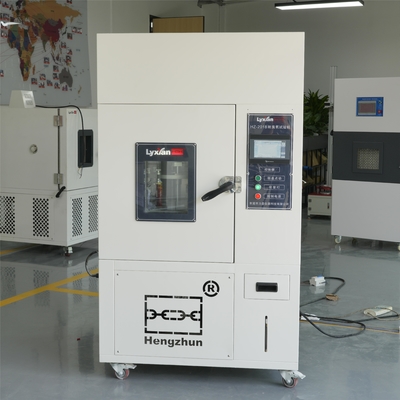

Ozone Aging Test Chamber is a major factor in rubber cracking although it is rare in the atmosphere, ozone aging tank simulates and enhance the condition of ozone in the atmosphere to study the effects of ozone on rubber, and then identify and evaluate the method to resist ozone and aging for rubber, adopt effective anti-aging measures to enhance the life of rubber products.



Ozone Aging Test Chamber Main function:

Ozone Test Chamber is used to test the ozone environment, the characteristics of crack-resistant rubber, ozone resistance testing machine, can control and adjust the concentration of ozone environment, to determine the anti-ozone properties of the specimen.



Ozone Aging Test Chamber Technical parameter:



Model Number
HZ-2018 Ozone Aging Test Chamber
Temperature
Standard RT+10~+80℃ / 5~100℃ option
Temperature Accuracy
±2 ℃
Ozone concentration
0~1000pphm adjustable
Relative humidity
60%RH above
Humidity range
35%-85%
Ozone produced mode
Ozone generator or UV absorption method
Inside air velocity
over 2 feet/sec
accessories

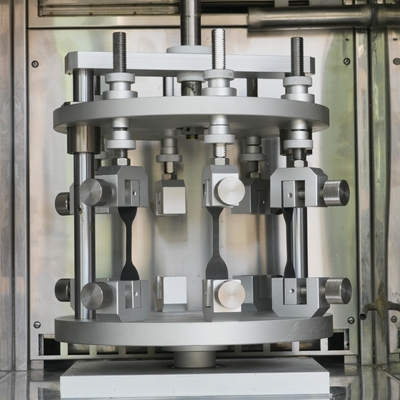

tensile fixture 6 groups
Power
1phase,AC220V,15A
Weight
250kg
Standard
ASTM1171 ISO1431 ASTM1149





Ozone Environmental Testing Machine Rubber Ozone Stability Accelerate Aging Test Chamber Standard RT+10~+80℃  ASTM1171 0

Ozone Environmental Testing Machine Rubber Ozone Stability Accelerate Aging Test Chamber Standard RT+10~+80℃  ASTM1171 1

Ozone Aging Test Chamber Main feature:

Equipment by the occurrence of silent and efficient ozone generator ozone gas, and a certain amount of air processed, the switch in the mixture into the chamber, the continuous line UV detector to detect the concentration of ozone, ozone generator control feedback to the systems to control system settings according to the occurrence of effective control of ozone to the ozone chamber to maintain the appropriate concentration of work by heating humidification systems to meet all the test conditions.



Ozone Aging Test Chamber Corresponding standard:

JIS K 6259 ASTM1149 ASTM1171 ISO1431 DIN53509 GB7762 GB/T13642



ozone rubber test chamber, also known as an ozone resistance test chamber or ozone exposure chamber for rubber, is a specialized testing equipment used to assess the resistance of rubber materials to ozone-induced degradation. Rubber products, such as seals, gaskets, hoses, and belts, can experience deterioration when exposed to ozone over time. The ozone rubber test chamber allows manufacturers and researchers to simulate and evaluate the effects of ozone exposure on rubber samples.
