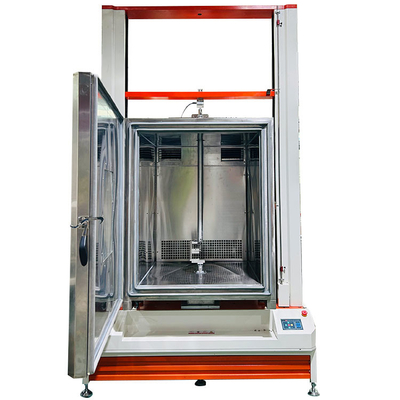

Universal Testing Machine High Low Temperature Tensile Testing Machine For PCB With Temperature Range -70~150°C

Large Image : Universal Testing Machine High Low Temperature Tensile Testing Machine For PCB With Temperature Range -70~150°C

Product Details:

Place of Origin:	China
Brand Name:	lixian
Certification:	CE
Model Number:	HZ-1003C

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiate
Packaging Details:	wood
Delivery Time:	7 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	negotiate

Contact Now

Universal Testing Machine High Low Temperature Tensile Testing Machine For PCB With Temperature Range -70~150°C

Description

Tensile Strength Testeing Machine:	Tensile Strength	Tensile Strength Testeing Instrument:	For PCB
Motor:	Taiwan “Delta” Servo Motor And Drive	Measuring Accuracy:	Tolerance ±1% / Tolerance ±0.5%
Warranty:	1 Year	Weight:	350kg
Standard:	BS.EN.ASTM,DIN,ASTM,ASTM E8/A370/ISO 75001,ISO	Accuracy:	±1%
Control System:	PLC	Temperature Range:	-70~150°C Or Bigger
Load Capacity:	20kN	Power Supply:	220V/50Hz
Stroke:	800mm	Type:	Universal Testing Machine
High Light:	PCB Universal Testing Machine , High Low Temperature Universal Testing Machine

Universal Testing Machine High Low Temperature Tensile Testing Machine For PCB With Temperature Range -70~150°C

High low temperature test machine HZ-1003C.pdf

High temperature Tensile testing machine also known as a temperature-controlled tensile testing machine, is a specialized equipment used to evaluate the mechanical properties of materials under various temperature conditions. This type of machine allows researchers and engineers to determine how a material's strength, ductility, and other mechanical properties are affected by temperature changes.

High temperature Tensile testing machine HZ-1003C can be applied to test lots of materials in rubber tensile elongation, compression, tear, big size peel and other mid-force mechanical test(20KN), such as tires, belt, shoes, plastic,film, acrylic, FRP, ABS, EVA, PU, aluminum-plastic pipe, composite materials, waterproof materials, fibers, textiles, wire and cable, paper, gold foil, ribbons, thread, spring, wood, medicine packaging materials, tapes etc.

High temperature Tensile testing machine Specification

Model Number	HZ-1003C High temperature Tensile testing machine
Motor	Taiwan “Delta” servo motor and drive
Temperature range	-70~150°C or bigger
Max. load	20KNelongation test instrument option
Accurate grade	0.5 grade
Effective measuring range	Force from 0.2% to 100% (1grade) / from 0.4% to 100% (0.5 grade)
Measuring accuracy	Tolerance ±1% / tolerance ±0.5%
Tester resolution	Max load 1/200000, constant resolution
Effective tensile space	400, 500, 600mm or requirement
Testing speed	From 0.001 to 500mm/min
Cooling system	Compression from France

High temperature Tensile testing machine components:

Load Frame: The load frame provides the structural support and rigidity required to apply tensile or pulling forces to the test specimen. It usually includes a hydraulic or electromechanical system for applying the load.
Grips: The grips hold the test specimen securely in place during the tensile test. They are designed to prevent slippage or premature failure of the specimen.
Temperature Control System: This system regulates the temperature within the test chamber. It typically includes heating elements, cooling elements (such as liquid nitrogen or refrigeration systems), and sensors to monitor and control the temperature accurately.
Test Chamber: The test chamber is an enclosed space where the specimen is subjected to the desired temperature conditions. It is designed to maintain the temperature stability and prevent heat transfer to the surrounding environment.
Measurement and Data Acquisition System: This system comprises load cells, displacement sensors, and other instruments to measure the applied load, specimen deformation, and other relevant parameters. It also includes data acquisition devices to record and analyze the collected data.

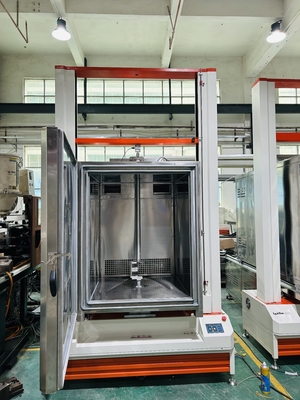

Universal Testing Machine High Low Temperature Tensile Testing Machine For PCB With Temperature Range -70~150°C 0

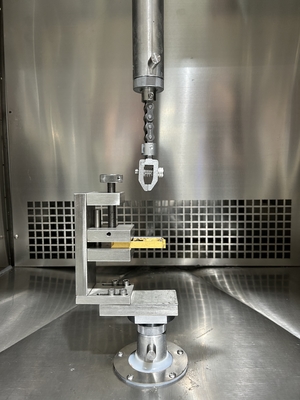

High temperature Tensile testing machine UTM Fixture

Tensile machine grips is an indispensable part of the universal test machine. Different materials need different fixture, is also a significant factor whether the test can be carried out smoothly and the accuracy of the test results. Tension testing machine fixture is an indispensable part of electronic tension testing machine. It determines the size of the fixture structure and the size of the labor intensity of the fixture operation. Tensile testing machine fixture in the structure of no fixed mode, according to different samples and test force size, in the structure of a great difference. The company provides tensile machine grips custom services to customers around the world and export UTM for 23 year.

High low temperature test machine HZ-1003C.pdf
