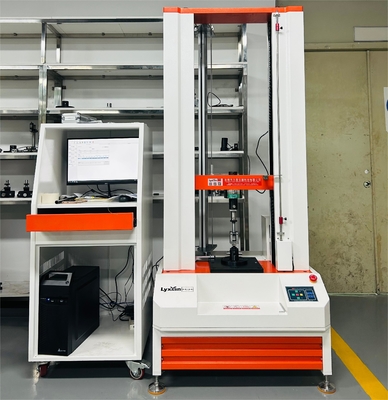

Universal Testing Machine For Glass Fiber In-Plane Shear Strength Max Load 20KN Accurate Grade 0.5 Grade
Computer Type Universal Testing Machine HZ-1003A.p...
Universal Testing Machine shear strength test machine, also known as a shear testing machine or shear tester, is a specialized equipment used to determine the shear strength or resistance of materials. It measures the ability of a material to withstand shear forces or deformation before failure occurs.
SPECIFICATIONS
| Max load |
20KN |
| Extensometer |
Comply with Extensometer (if need, please inform supplier before order) |
| Control Mode |
Force from 0.2% to 100% / from 0.4% to 100% |
| Weight |
350KG |
| Accurate Grade |
0.5 grade |
| Effective Measuring Range |
Force from 0.2% to 100% / from 0.4% to 100% |
| Load Sensor |
Basic configuration sensor max load: one |
| Effective Test Width |
420mm (can be increased the tensile space according to customers requirement ) |
| Effective Tensile Stoke |
800mm (can be increased the tensile space according to customers requirement ) |
| Testing Speed |
From 0.01 to 500mm/min, adjustable |
| Displacement Accuracy |
Tolerance:±0.5% / tolerance: ±0.2% |
| Safety |
Electronic-limit protection |
| Overload Protection |
Overload 10%, automatic protection |
| Machine Dimension |
80x55x220cm (L*W*H) |
| Motor |
Taiwan “Delta” servo motor and drive |
| Power Supply |
220V , 50HZ or according to the requirement |

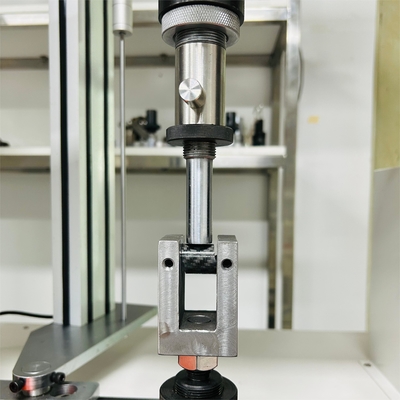

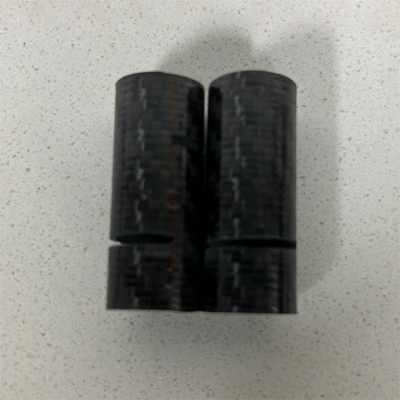

During a shear strength test, the specimen is placed between the shear fixtures, and a shear load is applied. The load frame moves the fixtures relative to each other, inducing shear deformation in the specimen. The load cell measures the applied shear load, while the displacement measurement system records the deformation or displacement of the specimen.
The collected data is used to calculate shear stress (shear load divided by the cross-sectional area) and shear strain (shear displacement divided by the original height or length) for evaluating the shear strength properties of the material.
Shear strength testing is performed on various materials such as metals, plastics, composites, soils, and adhesives. The specific test method and standards used for shear strength testing depend on the material and application. Organizations such as ASTM International or ISO provide standards that outline specific procedures and guidelines for conducting shear strength tests on different materials.
Computer Type Universal Testing Machine HZ-1003A.p...
UTM Fixture
Tensile machine grips is an indispensable part of the universal test machine. Different materials need different fixture, is also a significant factor whether the test can be carried out smoothly and the accuracy of the test results. Tension testing machine fixture is an indispensable part of electronic tension testing machine. Through the fixture clamping sample for the specimen after force, the size of the test force that the fixture can bear is a very significant index of the fixture. It determines the size of the fixture structure and the size of the labor intensity of the fixture operation. Tensile testing machine fixture in the structure of no fixed mode, according to different samples and test force size, in the structure of a great difference. The company provides tensile machine grips custom services to customers around the world and export UTM for 23 year.
