Dynamic Balancing Machine For Fan Single-Sided Vertical Type Balance Speed (R/Min) 800 (Reverse Braking Brake System)

Dynamic Balancing Machine For Fan Single-Sided Vertical Type Balance Speed (R/Min) 800 (Reverse Braking Brake System)
Dynamic Balancing Machine For Fan Single-Sided Vertical Type Balance Speed (R/Min) 800 (Reverse Braking Brake System) Dynamic Balancing Machine For Fan Single-Sided Vertical Type Balance Speed (R/Min) 800 (Reverse Braking Brake System)

Large Image :  Dynamic Balancing Machine For Fan Single-Sided Vertical Type Balance Speed (R/Min) 800 (Reverse Braking Brake System)

Product Details:
Place of Origin: CHINA
Brand Name: lixian
Certification: CE
Model Number: HZ-L16
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiate
Packaging Details: wooden
Delivery Time: 7days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500hundred sets per month

Dynamic Balancing Machine For Fan Single-Sided Vertical Type Balance Speed (R/Min) 800 (Reverse Braking Brake System)

Description
Display Mode: LED/LCD Balancing Plane: 1/2/3 Plane
Control System: PLC/PC Balance Speed (r/min): 800 (reverse Braking Brake System)
Weight: 200kg Power Supply: 220V
The Maximum Diameter Of The Workpiece: 650mm Balancing Mode: Dynamic
Model: HZ-L16 TYPE: Single-sided
High Light:

Fan Dynamic Balancing Machine

,

Vertical Type Dynamic Balancing Machine

,

Single-Sided Dynamic Balancing Machine

Dynamic Balancing Machine For Fan Single-Sided Vertical Type Balance Speed (R/Min) 800 (Reverse Braking Brake System)



Fan Dynamic Balancing Machine

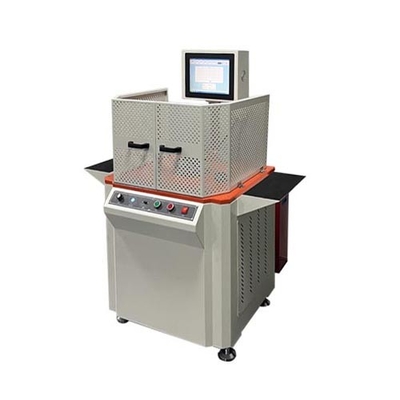

The L16 series product is a kind of vertical structure hard support balancing machine with a wide range of uses, which is designed and manufactured by introducing advanced technology. It is widely used in water pump impellers, brake discs, saw blades, fans, Balance test of disc workpieces such as pulleys and tires. The display part of this product is a 10.4-inch LCD touch screen display. It not only has the characteristics of large measurement range, high efficiency, safe and simple operation, and intuitive display, but also occupies a leading position in the domestic balancing machine industry

Fan Dynamic Balancing Machine Application

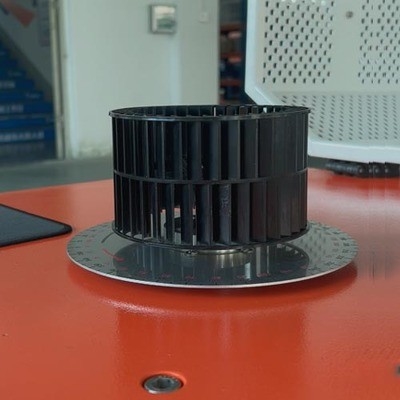

Dynamic Balancing Machine combines high-precision mechanical parts and advanced electrical parts into one. Hair dryer motor fan blade Dynamic Balancing Machine is one of the balancing machines developed, designed and manufactured by our company based on the core technology at home and abroad. It's currently the most advanced model in the world, and is applied to various rotating workpieces, such as: micro-motors, power tools, water pumps, turbocharger rotors, textile machinery, high-speed tools, gyroscopes, fans, aerospace and other industries. This machine adopts a belt transmission device, which has the advantages of high precision, high efficiency, convenient operation, intuitive display, rapid measurement, stable performance, and the use of frequency conversion speed regulation device to control the speed. The electromechanical measurement system can be equipped with a microcomputer digital display measurement system or a computer measurement system.
Fan Dynamic Balancing Machine Specification
Model Number
HZ-L16
Workpiece mass range
0.5-16kg
The maximum diameter of the workpiece
650mm
measurement method
double sided
Balance speed (r/min)
800 (reverse braking brake system)
Motor Power (kw)
1.1
The minimum detectable amount(g.cm)
5
Spindle bearing
NSK
ceramic piezoelectric sensor
1 set
Minimum reachable residual unbalance
≤3 g.mm/kg



Dynamic Balancing Machine For Fan Single-Sided Vertical Type Balance Speed (R/Min) 800 (Reverse Braking Brake System) 0
