Product Details:
Place of Origin: China
Brand Name: lixian
Certification: CE
Model Number: HZ-4012H
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiate
Packaging Details: wood
Delivery Time: 7 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: negotiate

Torsion Testing Machine Computerized Steel Bar Horizontal Torsion Tester Twist Angle Measuring Range 0~1000° Hz-4012h

Description
MODEL: HZ-4012H Effective Side Torque Range (N.m): 1%-100%;
Relative Error Of Torsion Angle: ±1.0%; Relative Error Of Torque Indication: ±1.0%;
Torque Resolution: 1/±300000; Maximum Torque(N.m): 500
Twist Angle Measuring Range: 0~1000° Safety: Electronic-limit Protection
Noise: Low Noise Warranty: 12 Months
High Light:

Horizontal Torsion Testing Machine

,

Computerized Steel Bar Horizontal Torsion Tester

Torsion Testing Machine Computerized Steel Bar Horizontal Torsion Tester Twist Angle Measuring Range 0~1000° Hz-4012h

Metal Torsion Testing machine - HZ-4012H.pdf

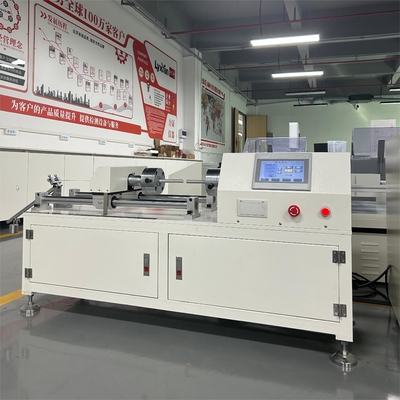

Torsion Testing Machine Equipment Overview
Electronic torsion testing machine is composed of loading system, transmission system, data collection, processing, control,display system, etc. It is suitable for testing the mechanical properties of various torsional elastic components, components,bolts, etc. It adopts AC servo motor and precision reducer transmission, which has the characteristics of uniform loading, stability, no impact phenomenon, and accurate data acquisition and control. The whole machine uses the all-digital ZC Test smart data acquisition and processing system and liquid crystal display system to conduct multi-point testing of the torsion angle of the sample. The machine adopts a horizontal structure, embedded high-performance single-chip MCU controller, LCD display, full Chinese operation and display interface, the display information is intuitive and easy to read, multi-button operation, and Chinese display interface make your operation easier. Complete the system parameter settings according to the customary prompt interface sequence.

Torsion Testing Machine​ structure and control system description
[Measurement display system] This machine uses a large-screen liquid crystal display system to simultaneously display the torque T, torsion angle θ, and test speed of the sample. The system can set the torsion angle θ to detect the torque of the specimen, and can also set the torque to detect the torsion angle of the specimen.
[Safety protection system] Overload protection, over-current protection, etc.

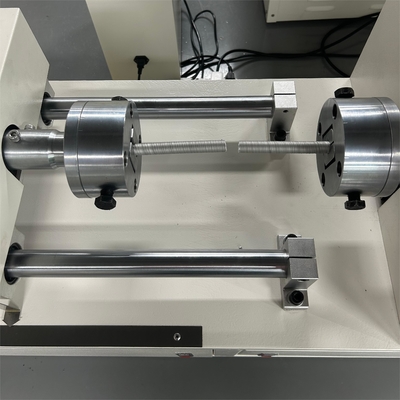

[Main machine] adopts a horizontal structure, and the main structure adopts an overall thickened steel plate structure to ensure the rigidity of the whole machine; the clamps adopt high-quality carbon steel 45 quenching (HR55~65) method, which has a long service life; the installation and disassembly of the specimen are convenient and Fast.
[Drive system] Fully digital ZCTestmart control system drive; adjustable speed, uniform and stable loading.
[Transmission system] Adopts precision reducer transmission to ensure uniformity, stability and transmission accuracy.


Torsion Testing Machine Working environment requirements
1 At room temperature within the range of 100C to 350C, the relative humidity is ≤80%;
2 On a stable foundation or workbench;
3 In an environment with no vibration and no corrosive media around;
4 The fluctuation range of the power supply voltage should not exceed ±10% of the rated voltage.
Torsion Testing MachineSpecification
Model Number
HZ-4012H
Power
Electronic
Maximum torque(N.m)
500
Effective side torque range (N.m)
1%-100%;
Relative error of torque indication
±1.0%;
Torque resolution
1/±300000;
Twist angle measuring range
0~1000°
Relative error of torsion angle
±1.0%;
Relative error of speed indication
±1.0%;
Power
AC 220V±10%, 50Hz;
Host net size (mm)
1050*430*550mm
Testing machine level
Level 1



Torsion Testing Machine Computerized Steel Bar Horizontal Torsion Tester Twist Angle Measuring Range 0~1000° Hz-4012h 0

Torsion Testing Machine Computerized Steel Bar Horizontal Torsion Tester Twist Angle Measuring Range 0~1000° Hz-4012h 1

Torsion Testing Machine Computerized Steel Bar Horizontal Torsion Tester Twist Angle Measuring Range 0~1000° Hz-4012h 2
