Thermal Conductivity Meter Test Instrument For Rubber Materials Precision ± 1℃ Room Temperature ~100℃ Hz-7039

Certification
China Dongguan Lixian Instrument Scientific Co.,LTD certification
China Dongguan Lixian Instrument Scientific Co.,LTD certification
I'm Online Chat Now

Thermal Conductivity Meter Test Instrument For Rubber Materials Precision ± 1℃ Room Temperature ~100℃ Hz-7039

Thermal Conductivity Meter Test Instrument For Rubber Materials Precision ± 1℃ Room Temperature ~100℃ Hz-7039
Thermal Conductivity Meter Test Instrument For Rubber Materials Precision ± 1℃ Room Temperature ~100℃ Hz-7039 Thermal Conductivity Meter Test Instrument For Rubber Materials Precision ± 1℃ Room Temperature ~100℃ Hz-7039 Thermal Conductivity Meter Test Instrument For Rubber Materials Precision ± 1℃ Room Temperature ~100℃ Hz-7039

Large Image :  Thermal Conductivity Meter Test Instrument For Rubber Materials Precision ± 1℃ Room Temperature ~100℃ Hz-7039

Product Details:
Place of Origin: China
Brand Name: Lixian
Certification: ISO/ASTM/CE/ROSH
Model Number: HZ-7039
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 1000~6000/per set
Packaging Details: standard export wooden case
Delivery Time: 5~8 days
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 300 sets /per month

Thermal Conductivity Meter Test Instrument For Rubber Materials Precision ± 1℃ Room Temperature ~100℃ Hz-7039

Description
MODLE: HZ-7039 Measured Temperature Range: Room Temperature ~100℃, Precision ± 1℃;
Timing Part: Range 0~999.9s; Resolution 0.1s Power Supply: 220V, 50Hz
Measurement Accuracy: 10% Heat The Copper Block With 36V: Heat The Copper Block With 36V
Test Range: 0.1~300w / M K Operation: Manual+Automatic
Application: Rubber ,plastic ,nylon ,leather And Etc Warranty: 12 Months
High Light:

Rubber Materials Thermal Conductivity Meter

,

Room Temperature Thermal Conductivity Meter

,

Precision Thermal Conductivity Meter

Rubber Silicone Thermal Conductivity Tester Machine Measured temperature range room temperature ~100℃

Thermal conductivity tester new HZ-7039A.pdf

Thermal Conductivity Tester can be roughly divided into two categories: steady-state method and dynamic method.The tester uses steady-state method to measure the thermal conductivity of different materials. The tester consists of heater, digital display temperature gauge, digital display timer, etc. (using integrated design). Its design method is clear, simple and typical and practical.Measuring the thermal conductivity of matter is an important part of thermal experiments.




Thermal Conductivity Tester Applicable Industry
Widely used in universities, research institutes, quality inspection departments, and production of plant material thermal conductivity detection.





Model
ZME-7039A
Power supply
50HZ;AC 220V;
Test materials
silicone rubber, rubber materials.
Measured temperature range
room temperature ~100℃, precision ± 1℃;
Timing part
range 0~999.9s; resolution :0.1s
Measurement accuracy
10%
Heat source
heat the copper block with 36V
Delivery
7 days
Sells point
1 year warranty
Test range
0.1~300w / m k

With automatic compression, automatic thickness measuring device, and connect the computer to achieve automatic control. The instrument uses temperature gradient detection, improve the accuracy of the test. Can detect multiple parameters of the thermal resistance curves under different pressures, optimized mathematical model to measure the thermal conductivity and thermal resistance of materials and the interface thermal contact resistance.

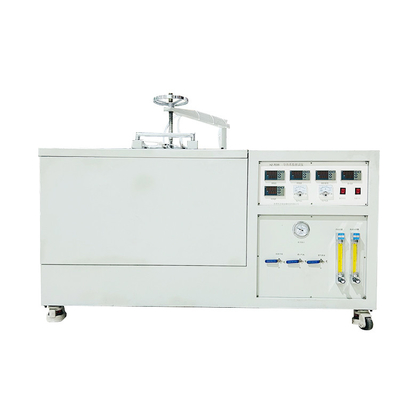

Thermal Conductivity Meter Test Instrument For Rubber Materials Precision ± 1℃ Room Temperature ~100℃ Hz-7039 0

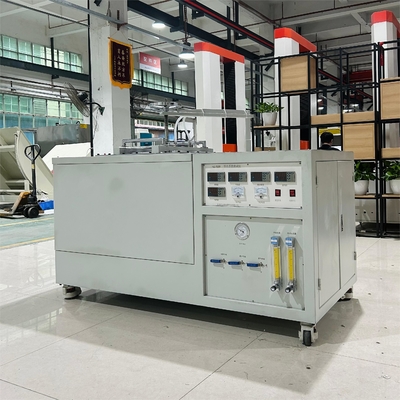

Thermal Conductivity Meter Test Instrument For Rubber Materials Precision ± 1℃ Room Temperature ~100℃ Hz-7039 1

Thermal Conductivity Meter Test Instrument For Rubber Materials Precision ± 1℃ Room Temperature ~100℃ Hz-7039 2
