Salt Spray Corrosion Tester Corrosion Test (CASS)50℃±1℃ 480L Capacity For Metal Paint Coating Aging Test

Salt Spray Corrosion Tester  Corrosion Test (CASS)50℃±1℃ 480L Capacity For Metal Paint Coating Aging Test
Salt Spray Corrosion Tester  Corrosion Test (CASS)50℃±1℃ 480L Capacity For Metal Paint Coating Aging Test
Salt Spray Corrosion Tester  Corrosion Test (CASS)50℃±1℃ 480L Capacity For Metal Paint Coating Aging Test Salt Spray Corrosion Tester  Corrosion Test (CASS)50℃±1℃ 480L Capacity For Metal Paint Coating Aging Test Salt Spray Corrosion Tester  Corrosion Test (CASS)50℃±1℃ 480L Capacity For Metal Paint Coating Aging Test Salt Spray Corrosion Tester  Corrosion Test (CASS)50℃±1℃ 480L Capacity For Metal Paint Coating Aging Test

Large Image :  Salt Spray Corrosion Tester Corrosion Test (CASS)50℃±1℃ 480L Capacity For Metal Paint Coating Aging Test

Product Details:
Place of Origin: China
Brand Name: lixian
Certification: CE
Model Number: HZ-2001A
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiate
Packaging Details: wood
Delivery Time: 7 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500hundred sets per month

Salt Spray Corrosion Tester Corrosion Test (CASS)50℃±1℃ 480L Capacity For Metal Paint Coating Aging Test

Description
Capacity: 480L Air Pressure: 1.00± 0.01kgf /cm2
Spray Volume: 1.0~2.0ml/80cm2/h (working At Least 16 Hours) Standard: ASTM B 117 Standard Salt Spray Test
Testing Room Temperature: Salt Test (NSS ACSS)35℃±1℃/ Corrosion Test (CASS)50℃±1℃ Model: HZ-2001A
Brine Temperature: 35±1 Degree / 50±1 Degree PH: 6.5~7.2 / 3.0~3.2
Salt Concentration: The Concentration Of Sodium Chloride 5% Or The 5% Warranty: 12 Months
Color: Grey Operation Interface: User-friendly Interface

Salt Spray Corrosion Tester ASTM B 117 Standard 270L Capacity For Metal Paint Coating Salt Spray Fog Aging Test Chamber

programmable salt spray testing machine 120L HZ-20...
Salt Spray Corrosion Tester Equipment summary:
Salt spray testing machine used to test the corrosive resistance of products whose the surface was treated with paint,
electroplating, inorganic and organic film, anode handling, anti-rust oil, etc. Using automatic water replenishment system,
automatic replenishment when the water level is too low. A salt spray fog aging test chamber, also known as a salt spray chamber or salt fog chamber, is a type of testing equipment used to simulate the effects of saltwater exposure on materials and coatings. It is commonly used in industries such as automotive, aerospace, marine, and corrosion research.
The purpose of the salt spray fog aging test is to assess the corrosion resistance and durability of materials and coatings when exposed to a highly corrosive and aggressive environment, such as saltwater or salt-laden atmospheres. This type of testing helps manufacturers evaluate the performance of their products, identify potential weaknesses, and improve their corrosion protection strategies.
The salt spray fog aging test chamber creates a controlled environment where a saline solution (typically sodium chloride) is atomized and sprayed as a fine mist or fog onto the test samples. The chamber maintains a constant temperature and humidity to simulate real-world conditions. The salt spray fog interacts with the test samples, accelerating the corrosion process and producing visible signs of corrosion, such as rust and pitting.
The duration of the test can vary depending on the specific requirements or standards being followed. Common test durations range from a few hours to several weeks. Throughout the test, the samples are periodically inspected, and their performance and corrosion resistance are evaluated based on predetermined criteria.
Salt spray fog aging test chambers are equipped with features to ensure accurate and repeatable testing conditions. These features may include temperature control systems, humidity control systems, automatic spray nozzles, collection systems for condensation, and corrosion-resistant construction materials.
It is important to note that while salt spray fog testing provides valuable information about corrosion resistance, it is a laboratory simulation and may not perfectly replicate real-world conditions. Therefore, the results should be interpreted with caution and complemented by other forms of testing and evaluation for a comprehensive assessment of a material or coating's performance in corrosive environments.

Salt Spray Corrosion Tester Specification

Model HZ-2001A
Testing room Capacity 480L
Testing room temperature Salt test (NSS ACSS)35℃±1℃/ Corrosion Test (CASS)50℃±1℃
Pressure barrel temperature Salt test (NSS ACSS)47℃±1℃/ Corrosion Test (CASS)63℃±1℃
Brine temperature 35℃±1℃ 50℃±1℃
Salt concentration sodium chloride 5%
Air pressure 1.00±0.01kgf/cm2
Testing room relative humidity 85% above
PH 6.5~7.2 3.0~3.2
Spray form Programmable spray (continuous spray)
Power 1Φ AC220V 60Hz 30A

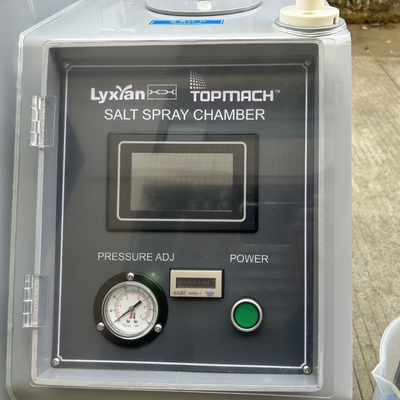

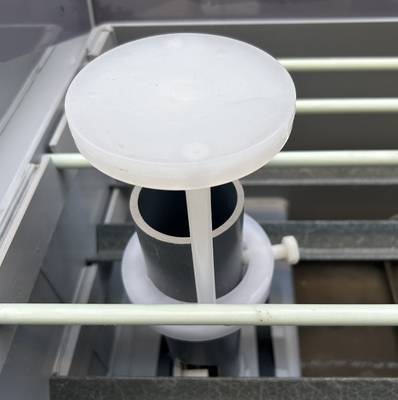

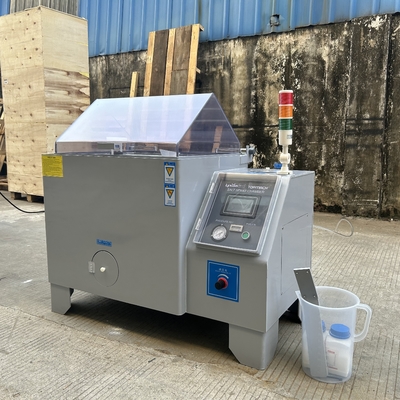

Salt Spray Corrosion Tester  Corrosion Test (CASS)50℃±1℃ 480L Capacity For Metal Paint Coating Aging Test 0
Salt Spray Corrosion Tester  Corrosion Test (CASS)50℃±1℃ 480L Capacity For Metal Paint Coating Aging Test 1
