Rubber Arc Resistance Performance Tester Equipment For Plastics Films Resins Test Voltage Ac 0 To 20 Kv

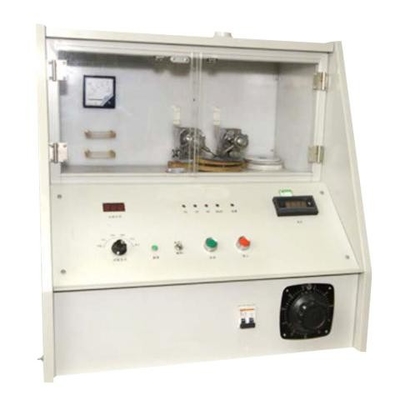

Large Image : Rubber Arc Resistance Performance Tester Equipment For Plastics Films Resins Test Voltage Ac 0 To 20 Kv

Product Details:

Place of Origin:	China
Brand Name:	lixian
Certification:	CE
Model Number:	HZ-7079

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	USD 1000~8000/per set
Packaging Details:	wood
Delivery Time:	7 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100 sets per month

Contact Now

Rubber Arc Resistance Performance Tester Equipment For Plastics Films Resins Test Voltage Ac 0 To 20 Kv

Description

Model:	7079	Product Name:	Rubber Arc Resistance Performance Tester
Output Voltage:	Communication 0 - 20 KV	Input Voltage:	AC 220 V
Power Capacity:	1.5 KVA	Test Current:	10MA-20MA-30MA-40MA Is Optional
Test Voltage Control Error:	≤ 1%	The Test Voltage Continuously Adjustable:	AC 0-20 KV
Arc On-off Time Error On-off Time Error:	<5ms	Weight:	50G
Highlight:	films Arc Resistance Performance Tester , 20 Kv Arc Resistance Performance Tester , plastics Arc Resistance Performance Tester

Rubber Arc Resistance Performance Tester Equipment For Plastics, Films, Resins Test Voltage Ac 0 To 20 Kv

Arc Resistance Tester Equipment summary:

The machine is in accordance with ASTM D 4999 design and manufacturing, used in electrical, electronics and electrical appliances industries such as plastics, resins, gum, and varnish arc resistant insulating material. It is mainly used in evaluating the performance of solid insulating material,such as arc resistance performance testing plastics, films, resins, mica, ceramic, glass, insulating oil,insulating paint, cardboard and other media; arc resistance testing machine controlled by computer,observed during the test online test curve; automatic storage test conditions and test results and other data, and can access, display, print.

Arc Resistance Tester Equipment security features:
1.Over pressure protection
2.Over-current protection
3.Short-circuit protection
4.Safety door opening protection
5.Software malfunction protection

Arc Resistance Tester Main configuration:
1.Main machine 1 set
2.Two million volts of a high-voltage generator 1 set
3.Microcomputer automatic voltage regulator device set (serial port)
4.The voltage and current collecting collection isolated a transmission device 1 set
5.The test electrode 2 sets
6.A current of release bar (resin type)

7.Arc-resistant computer monitoring software (computer self-made) 1 set
8.The program CD 1 set
9.The product manual 1 piece
10.A certificate 1 piece
11.Random of tools 1 set
Arc Resistance Tester Specification

			Model

			HZ-7079

			Product name

			Arc resistance performance testing Equipment

			Output voltage

			Communication 0 - 20 KV

			Input voltage

			AC 220 V

			Power capacity

			1.5 KVA

			Test current

			10MA-20MA-30MA-40MA is optional

			Test voltage control error

			≤ 1%

			The test voltage continuously adjustable

			AC 0-20 KV

			Arc on-off time error

			on-off time error <5ms

			weight

			50G
