Concrete Brick Compression Test Machine Equipment Hydraulic Pump Rated Pressure 40Mpa 2000Kn Max Load

Large Image : Concrete Brick Compression Test Machine Equipment Hydraulic Pump Rated Pressure 40Mpa 2000Kn Max Load

Product Details:

Place of Origin:	China
Brand Name:	lixian
Certification:	CE
Model Number:	HZ-009

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiate
Packaging Details:	Standard safety export woodcase
Delivery Time:	7 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	200sets/ month

Contact Now

Concrete Brick Compression Test Machine Equipment Hydraulic Pump Rated Pressure 40Mpa 2000Kn Max Load

Description

Model:	HZ-009	Test Force Resolution:	0.03kN
Hydraulic Pump Rated Pressure:	40MPa	Maximum Distance:	330mm
Piston Diameter:	φ 250mm	Max Load:	2000KN
Test Force Measuring Range KN:	4%-100%FS	Piston Stroke:	50mm
Upper And Lower Bearing Plate Size:	370×370mm	Motor Power:	0.77 KW
Weight:	650kg
Highlight:	40Mpa Concrete Brick Compression Test Machine , 2000Kn Concrete Brick Compression Test Machine

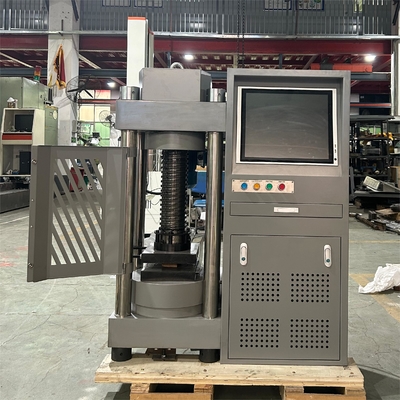

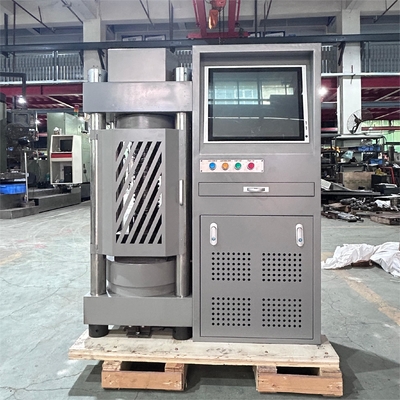

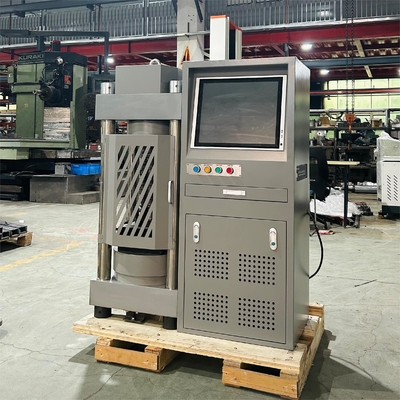

Concrete Brick Compression Test Machine equipment Hydraulic Pump Rated Pressure 40Mpa 2000Kn Max Load

Concrete Compression Test Machine Equipment Overview

HZ-009 Concrete Hydraulic compression testing machine is mainly used for brick, stone, cement, concrete and other building materials, compressive strength test, also used to test the compressive performance of other materials.

Concrete Compression Test Machine Spatial Adjustment Method

Electric lift

Concrete Compression Test Machine Hydraulic System

The hydraulic oil tank driven by high-pressure pump into the motor oil, flows through the unidirectional valve, high pressure filter, pressure valve, servo valve, into the cylinder. Computer control signals to the servo valve, Control direction and opening of the servo valve, to control the flow into the cylinder, achieve constant test force control.

Concrete Compression Test Machine Control system

System including digital servo valve, high-precision sensors, controllers and software, high control precision and reliability. Meet GB, ISO, ASTM and other standards for cement, mortar, concrete and other materials testing requirements.

Concrete Compression Test Machine Main Performance Technical Specifications:

Max load	2000kN
Test force measuring range	4%-100%FS
Test Force showed the relative error	≤ indicating value±1%
Test Force Resolution	0.03kN
Hydraulic pump rated pressure	40MPa
Upper and lower bearing plate size	370×370mm
Maximum distance	330mm
Piston diameter	φ250mm
Piston stroke	50mm
Motor Power	0.77 kW
Outside dimension (lwh)	640×720×1500 mm
Weight	2000kg

Concrete Brick Compression Test Machine Equipment Hydraulic Pump Rated Pressure 40Mpa 2000Kn Max Load 1
