Universal Testing Machine Rubber Tensile Strength Testing Machine Equipment ASTM D412 ISO 37 Standard 20KN Maximum Load Customized Color

Large Image : Universal Testing Machine Rubber Tensile Strength Testing Machine Equipment ASTM D412 ISO 37 Standard 20KN Maximum Load Customized Color

Product Details:

Place of Origin:	CHINA
Brand Name:	lixian
Certification:	CE
Model Number:	HZ-1003B

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiate
Packaging Details:	wooden
Delivery Time:	7days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	500hundred sets per month

Contact Now

Universal Testing Machine Rubber Tensile Strength Testing Machine Equipment ASTM D412 ISO 37 Standard 20KN Maximum Load Customized Color

Description

Control Mode:	From 0.4% To 100%	Power:	750W(depending On Different Demand Of Force, Using Different Motor)
Accurate Grade:	0.5 Grade	Testing Speed:	From 0.01 To 500mm/min,
Drive System:	Taiwan “Delta” AC Servo Motor	Safety:	Overload 10%, Automatic Protection
Usage:	Rubber Tensile Test Strength Machine	Key Words:	Tensile Test Machine
Data Sampling Frequency:	200times/sec	Max Load Capacity:	Up To 20 KN
Grip:	C Type Grip 20KN	Servicr:	OEM ODM
Highlight:	Rubber Tensile Strength Testing Machine , ASTM D412 Universal Testing Machine , 20KN Universal Testing Machine

Universal Testing Machine For Paper Handle Tensile Test Strength Max Load 20KN Accurate 0.5 Grade HZ-1003

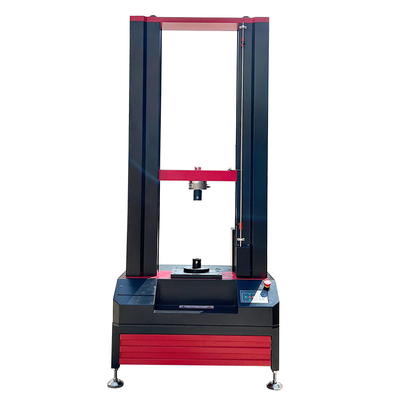

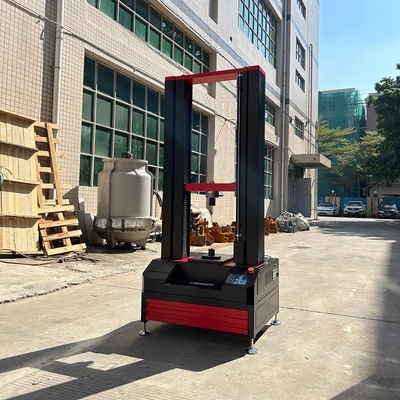

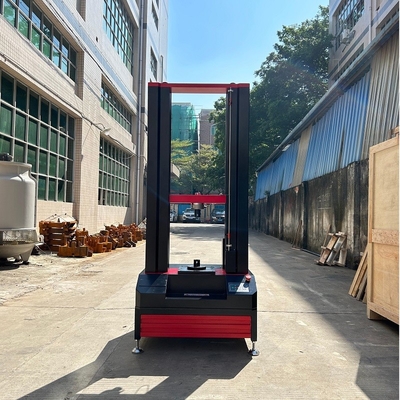

Universal Testing Machine

Computer-type servo universal material rubber tensile test machine is combining electronic technology and mechanical transmission. It has a broad and accurate load speed and measurement range, high accuracy and sensitivity for the measurement and control of load and displacement, and can also carry out equal speed loading and displacement automatic control test.With simple and convenient operation, especially suitable for the production line to control the product quality of testing instruments.This series of models is mainly suitable for the test load of less than 20KN.

Universal Testing Machine SPECIFICATIONS

Model Number	HZ-1003B
Power	750W(depending on different demand of force, using different motor)
Data sampling frequency	200times/sec
Maximum load	100KG,200KG, 500KG,1000KG,2000KG optional
Accuracy	0.5 grade
Resolution of force	Max load 1/250000, constant the resolution
Power Supply	220V, 1phase 50HZ
Range of Testing Speed	0.001~500 mm/min (Can customize)
Overload Protection	Overload 10%, automatic protection
Units	Kg, Lb, N, KN, g, kg/cm2(can be exchanged)
Extensometer	test material elongation, meet ASTM D638,optional
Grip	C type grip 20KN

Computer Type Universal Testing Machine HZ-1003A.p...

UTM Fixture

Tensile machine grips is an indispensable part of the universal test machine. Different materials need different fixture, is also a significant factor whether the test can be carried out smoothly and the accuracy of the test results. Tension testing machine fixture is an indispensable part of electronic tension testing machine. Through the fixture clamping sample for the specimen after force, the size of the test force that the fixture can bear is a very significant index of the fixture. It determines the size of the fixture structure and the size of the labor intensity of the fixture operation. Tensile testing machine fixture in the structure of no fixed mode, according to different samples and test force size, in the structure of a great difference. The company provides tensile machine grips custom services to customers around the world and export UTM for 23 year.

Recommend Products

Universal testing machine, a material testing machine integrating tensile, bending, compression, shearing, ring stiffness and other functions. It is mainly used for the mechanical performance testing of metal and non-metal materials. It is used in industrial and mining enterprises, scientific research units, colleges and universities, engineering Ideal testing equipment for quality supervision stations and other departments.
