Multipurpose 50Hz Horizontal Burning Tester , Anticorrosive Plastic Testing Machine

Multipurpose 50Hz Horizontal Burning Tester , Anticorrosive Plastic Testing Machine
Multipurpose 50Hz Horizontal Burning Tester , Anticorrosive Plastic Testing Machine

Large Image :  Multipurpose 50Hz Horizontal Burning Tester , Anticorrosive Plastic Testing Machine

Product Details:
Place of Origin: China
Brand Name: Lixian
Certification: CE/ISO
Model Number: HZ-1717
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Standard export wooden case
Delivery Time: 5~8 days
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 500 sets/per month

Multipurpose 50Hz Horizontal Burning Tester , Anticorrosive Plastic Testing Machine

Description
Model: HZ-1717 Internal Volume: ≥0.5 Cubic Meters, With Glass Observation Door
Flame Time: 0 ~ 99 Minutes And 99 Seconds Can Be Set After-flame Time: 0 ~ 99 Minutes And 99 Seconds Can Be Set
Residual Burning Time: 0 ~ 99 Minutes And 99 Seconds Can Be Set Test Gas: More Than 98% Methane/37MJ/m3 Natural Gas (or Gas, Provided By The Customer)
Burning Angle: 20 °, 45 °, 90 ° (ie 0 °) Can Be Adjusted Burner Size Parameters: Imported Lamp, The Inner Diameter Of The Nozzle Is Ø9.5±0.3mm, The Effective Length Of The Nozzle Is 100±10mm, And There Are Air Adjustment Holes
Flame Height: 20-175mm, According To Standard Requirements Flow Meter: 105ml/min Standard
Power Supply: AC 220V, 50Hz Origin: China
High Light:

Multipurpose Horizontal Burning Tester

,

50Hz Horizontal Burning Tester

,

Anticorrosive Plastic Testing Machine

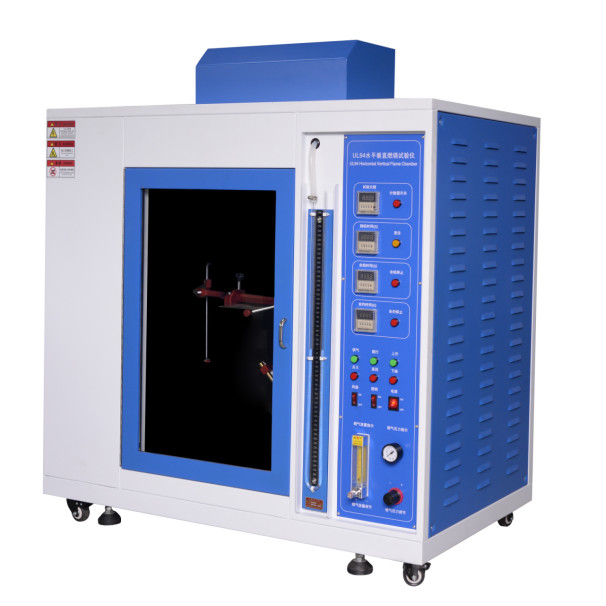

HZ-1717 UL94 Horizontal and Vertical Burning Tester



Equipment overview:

This tester is suitable for testing and evaluating the combustion characteristics of plastic materials. It is designed and manufactured according to the relevant provisions specified in the American UL94 standard "Flammability Test of Plastic Materials for Equipment and Appliance Parts". The vertical flammability test is equipped with a gas flow meter to adjust the size of the flame. It is driven by a motor, and the operation is simple and safe. This instrument can evaluate the flammability of materials or foams such as: V-0, V-1, V-2, HB grades.



Standard:

1. UL94 "Fire Test"

2. GBT2408-2008 "Plastics - Determination of Combustion Properties - Horizontal and Vertical Methods"

3. IEC60695-11-10 "Flame Fire Test"

4. GB5169.16-2017 "Fire hazard test for electrical and electronic products - Part 16: Test flame 50W horizontal and vertical flame test method"



Parameter:

Internal volume

≥0.5 cubic meters, with glass observation door

Timer

high-precision timer, adjustable within the range of 0 ~ 999.99 seconds, with an accuracy of ±0.5 seconds, the flame application time can be set, and the burning time can be recorded

Flame time

0 ~ 99 minutes and 99 seconds can be set

After-flame time

0 ~ 99 minutes and 99 seconds can be set

Residual burning time

0 ~ 99 minutes and 99 seconds can be set

Test gas

more than 98% methane/37MJ/m3 natural gas (or gas, provided by the customer)

Burning angle

20 °, 45 °, 90 ° (ie 0 °) can be adjusted

Burner size parameters

imported lamp, the inner diameter of the nozzle is Ø9.5±0.3mm, the effective length of the nozzle is 100±10mm, and there are air adjustment holes

Flame height

20-175mm, according to standard requirements

Flow meter

105ml/min standard

Product features

It is also equipped with lighting device, air extraction device, gas flow regulating valve, gas pressure gauge, gas pressure regulating valve, gas flow meter, gas U-shaped pressure gauge and sample holder

Power supply

AC 220V, 50Hz
