Ultrasonic 10KW Face Mask Making Machine , Multifunctional Mask Production Line

Ultrasonic 10KW Face Mask Making Machine , Multifunctional Mask Production Line
Ultrasonic 10KW Face Mask Making Machine , Multifunctional Mask Production Line Ultrasonic 10KW Face Mask Making Machine , Multifunctional Mask Production Line Ultrasonic 10KW Face Mask Making Machine , Multifunctional Mask Production Line

Large Image :  Ultrasonic 10KW Face Mask Making Machine , Multifunctional Mask Production Line

Product Details:
Place of Origin: China
Brand Name: Lixian
Certification: CE/ISO
Model Number: HZ-K104
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Standard export wooden case
Delivery Time: 10~15 days
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 300 sets /per month

Ultrasonic 10KW Face Mask Making Machine , Multifunctional Mask Production Line

Description
Function: KN95 Mask Machine Power: 10 KW
Type: Ultrasonic Dimension: 8500*1200*1800mm
Operation Height: 850mm (adjustable) Nose Wire: Built-in
Production Speed: 50 Pieces/min Fabric Width: 260mm
Protection: Automatic Stop Of Feeding And Alarm Power Supply: 220V 50HZ
High Light:

Ultrasonic Face Mask Making Machine

,

10KW Face Mask Making Machine

,

Multifunctional Mask Production Line





HZ-K104 Full-automatic KN95 Face Mask Making Machine Manufacture



Product Details:
The main structure of the KN95 automatic mask making machine includes: roll feeder, built-in nose bridge system, ear band welding machine, mask folding system and mask cutting system, which can automatically complete the main body of the mask, automatic nose clip installation, and ear band welding. Automatic counting etc. The mask body machine and ear wire welding machine can be produced automatically or independently, with great flexibility.
This equipment is suitable for the fully automatic production of 4-6 layers of built-in nose clips, no breathing valve and outer ear band KN95 masks.



Features:
1.KN95 mask making machine, small size high efficiency between 50-60 pcs/min;
2.Servo motor drive earloop welding machine, easy to installation;
3.Machine is made of stainless steel with fine surface polish;
4.Machine can be remote controlled with an extra online computer;
5.Good and fast after service: full English manual, installation video guidance, on line 1 to 1 instructed;



Technical parameter:

Model HZ-K104
Qualification Rate 98-99%
Equipment Efficiency Test speed: 50-60pcs/min
Stable speed: 50pcs/min
Equipment size 8500*1200*1800mm
Voltage Single-phase, 220V 60HZ
Machinery Test Report Provide
Logo Accept customization
ODM/OEM Accept
Lead time 10-15 days
Supply Ability 50 Sets Per/Month



Control system:

PLC programming control, 8 sets servo drive, high degree of automation. High stability, low failure rate and low noise.



Ultrasonic welding:

Ultrasonic welding is used to fuse the elastic belt into the outer side of both ends of the mask body. This is the last process of outer ear mask production. The machine is driven by 8sets servo motor, with precise transmission and adjustable speed. This outer ear line welding machine includes the ear line automatic feeding mechanism, ear line cutting mechanism and automatic welding mechanism.



Production process:

The Automatic KN95 Mask Machine adopted servo and constant temperature control system is controlled by PLC to make the material from coil material loading, nose bridge loading, ear band loading and welding, folding and pressing, mask forming, mask cutting, finished product unloading, complete the whole set of production process fully automatic operation;

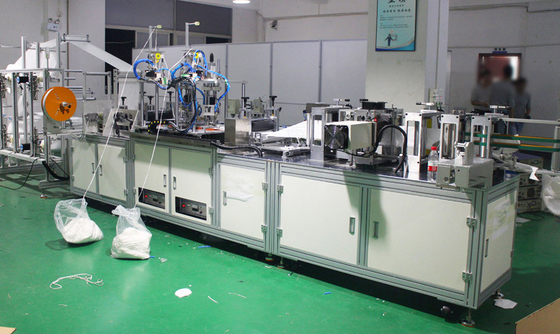

Ultrasonic 10KW Face Mask Making Machine , Multifunctional Mask Production Line 0

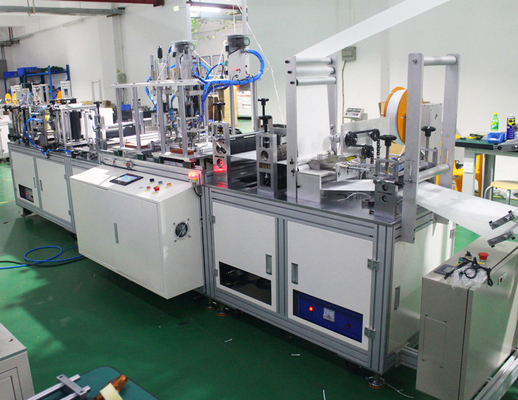

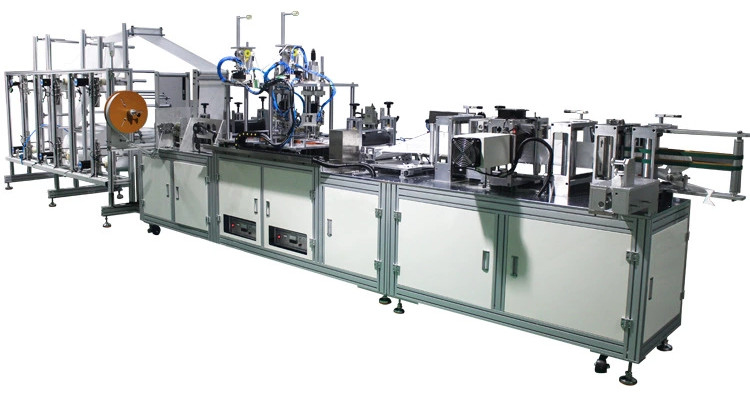

Ultrasonic 10KW Face Mask Making Machine , Multifunctional Mask Production Line 1Ultrasonic 10KW Face Mask Making Machine , Multifunctional Mask Production Line 2
