Double Sided Vertical Dynamic Balance Machine For Tire 42kg

Double Sided Vertical Dynamic Balance Machine For Tire 42kg
Double Sided Vertical Dynamic Balance Machine For Tire 42kg
Double Sided Vertical Dynamic Balance Machine For Tire 42kg Double Sided Vertical Dynamic Balance Machine For Tire 42kg Double Sided Vertical Dynamic Balance Machine For Tire 42kg Double Sided Vertical Dynamic Balance Machine For Tire 42kg

Large Image :  Double Sided Vertical Dynamic Balance Machine For Tire 42kg

Product Details:
Place of Origin: China
Brand Name: lixian
Certification: ce
Model Number: HZ-9734
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiate
Packaging Details: wood
Delivery Time: 7 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: negotiate

Double Sided Vertical Dynamic Balance Machine For Tire 42kg

Description
Maximum Mass Of Workpiece (kg): 42 Max Diameter Of Workpiece: 600
Balance Speed (r/min): Variable Frequency Stepless Speed Regulation Motor Power (kW): 1.5
Min Reachable Unbalance (g.mm/kg): Emar≤ 2 Measurement Plane (pcs): 2
Fixture: Provide 2 Sets Of Product Fixtures Test Motorcycle Size: 16" And 18"
Measuring System: Digital Display, Live Braking Speed Control Device Model: HZ-9706
High Light:

380V Dynamic Balancing Machine

,

Tire Dynamic Balancing Machine

,

2.2kw Dynamic Balance Machine

Double-Sided Vertical Dynamic Balancing Machine for Tire Maximum mass of workpiece 42kg

Dynamic Balancing Machine Overview

hard bearing balancing machine with a wide range of uses, which is designed and manufactured by our factory by introducing foreign advanced technology. It is widely used in water pump impellers, brake discs, saw blades, fans, etc. Balance effect of pulleys, hubs and tires


Dynamic Balancing Machine Features
It not only has the characteristics of large measurement range, high efficiency, safe and simple operation, and intuitive display, but also occupies a leading position in the domestic balancing machine industry.Standard.

.

Dynamic Balancing Machine Power supply and external dimensions
1. Power supply: 380V, 2.2KW
2. Dimensions: Electric cabinet: 0.6 meters long, 0.6 meters wide, 1.75 meters high Machine: Length 0.8m × Width 0.6m × Height 1m
3. Serial port: There is a 232 serial port, which cannot output reports, and there is a database
4. Calibration frequency: The manufacturer will arrange calibration before leaving the factory. It is recommended to calibrate once a year in the later stage. Usually, the customer can calibrate it by himself, weigh it with a balance weight, and put it on the machine, and the display is as much as it is.
5. Air inlet trachea diameter: 6mm in diameter
Dynamic Balancing Machine Quality standard:
1. Supplier product manufacturing standard GB/T4201-2006.
2. The supplier's product manufacturing requirements are also in accordance with the technical agreement signed by both parties. Warranty period: The "Three Guarantees" period of the supplier's products is one year, with lifetime maintenance.
Dynamic Balancing Machine Acceptance:
1. At the supplier, the equipment is subject to factory inspection, and the rotor is checked and verified.
2. At the buyer's place, conduct on-site acceptance of the equipment, conduct practical operations on physical workpieces, and complete the training that should be known and known.
Dynamic Balancing Machine After-sale service:
1. The supplier is responsible for the pre-ex-factory training services for the equipment ordered by the buyer, such as operation, balance calculation, and common troubleshooting.
2. The supplier is responsible for the operation training service for the operator of the purchaser at the purchaser.
3. Once the equipment fails, the company will respond to the support in the fastest way after receiving the notification from the user, and the arrival time will not exceed 24 hours to carry out maintenance work.
4. The supplier is responsible for the free service of the equipment during the "Three Guarantees" period, and is responsible for the lifetime maintenance service and spare parts supply service after the "Three Guarantees".

Dynamic Balancing Machine Specification

Brand Name

Lixian

Model Number

LX-DHL-42

Power

Electronic

Model

LX-DHL-42

Maximum mass of workpiece (kg)

42

Max Diameter of Workpiece

600

Balance speed (r/min)

Variable frequency stepless speed regulation

Motor power (kW)

1.5

Min reachable unbalance (g.mm/kg)

emar≤ 2

Measurement Plane (pcs)

2

Fixture

Provide 2 sets of product fixtures

Test motorcycle size

16" and 18"

measuring system

digital display, live braking speed control device

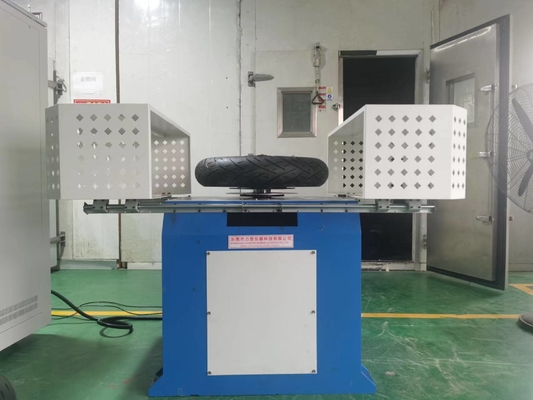

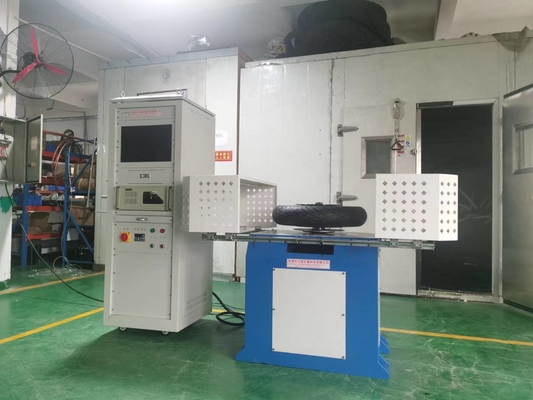

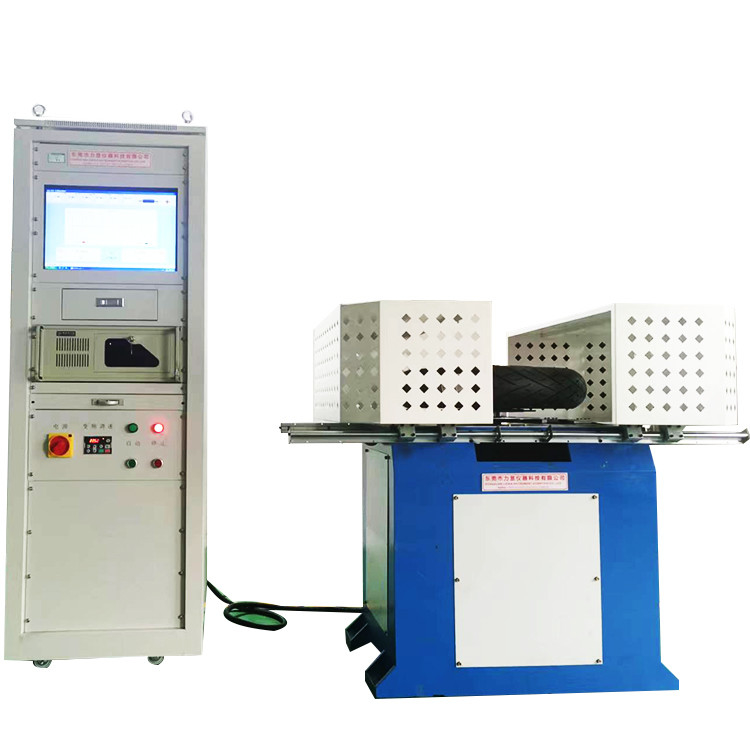

Detailed Images



Double Sided Vertical Dynamic Balance Machine For Tire 42kg 0
