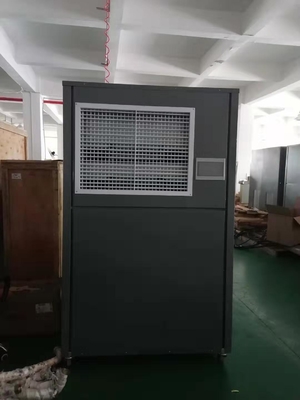

Wine Cellar Cabinet Type Air Conditioner Combined Frequency Conversion

Wine Cellar Cabinet Type Air Conditioner Combined Frequency Conversion
Wine Cellar Cabinet Type Air Conditioner Combined Frequency Conversion

Large Image :  Wine Cellar Cabinet Type Air Conditioner Combined Frequency Conversion

Product Details:
Place of Origin: China
Brand Name: Taikang
Certification: CE
Model Number: Model G50TH G71TH L125TH L150TH L150TH2 L200TH L225TH L250TH
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiate
Packaging Details: wood
Delivery Time: 7 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: negotiate

Wine Cellar Cabinet Type Air Conditioner Combined Frequency Conversion

Description
Model: G50TH G71TH L125TH L150TH L150TH2 L200TH L225TH L250TH Type: PTC Electric Heater
Temperature Setting Range And Control Accuracy: 18~25℃±1℃ Humidity Setting Range And Control Accuracy: 45~65%±5%
Evaporator: Copper Tube Finned Power: Three-phase380V/~/50Hz
Refrigerant: R410A Control Accuracy: ±5-10%.
Number Of P: 2 3 5 6 6 8 9 10 P Items: Cabinet Type (combined) Frequency Conversion Constant Temperature And Humidity
Highlight:

Wine Cellar Cabinet Type Air Conditioner

,

380V Cabinet Type Air Conditioner

,

Wine Cellar Air Conditioners 50Hz

Wine Cellar Air Conditioners Cabinet Type (Combined) Frequency Conversion Constant Temperature And Humidity 18~25℃±1℃



Factory Air Conditioner is used for indoor air conditioning under various environmental conditions, and has multiple functions such as cooling, dehumidification, heating, humidification, and ventilation. Temperature control range: when the temperature is set at 18-25°C, the control accuracy is ±0.5-1°C, the relative humidity is set at 50-70%, and the control accuracy is ±5-10%.



Factory Air Conditioner Cooling principle:

When the refrigeration system is working, the high-temperature and high-pressure R410 gas discharged from the compressor enters the condenser and is condensed into a medium-temperature supercooled liquid. After being throttled and depressurized by the expansion valve, it becomes a low-temperature and low-pressure gas-liquid two-phase mixture and enters the evaporator. It evaporates and absorbs the heat of the air passing through the evaporator, so that the air flowing through the evaporator can be cooled. After vaporization, the steam is sucked by the compressor, so that the cycle is continuous, so as to achieve the purpose of cooling.



Factory Air Conditioner Dehumidification principle:

Since the surface temperature of the fins of the evaporator is lower than the dew point temperature of the air, when the air flows through the surface of the evaporator, water will precipitate on the surface of the evaporator.

Heating: start the heater, when the air flows through the heater, the air is heated and the temperature rises.

Humidification: Start the humidifier, and the water vapor generated by the humidifier is continuously sent into the room by the fan to achieve the purpose of humidification..



Factory Air Conditioner Application

The unit has a variety of models to choose from, and can be widely used in the air conditioning needs of electronic factories, hospitals, pharmaceutical factories, printing factories, post and telecommunications, banks, computer rooms, power supply and distribution stations, communication stations and other buildings.



Technical Parameters

items Hanging constant temperature and humidity cabinet type (combined) frequency conversion constant temperature and humidity
Model Indoor Unit G50TH G71TH L125TH L150TH L150TH2 L200TH L225TH L250TH
outdoor unit

TK-WB



TK71WB TK-125WB TK-150WB TK-150WB TK200WB TK225WB TK250WB
number of p P 2 3 5 6 6 8 9 10
Cooling capacity kW 5 7.1 12.5 15 15 20 22.5 25
Electric heating kW 7.5 15 23.4 28 28 36 41 47
indoor unit air volume m3 / h 1150 1700 2500 3600 3500 5000 5000 5400
External residual pressure Pa 50/0 50/0 50/0 60/0 80/0 80/0 80/0 80/0
noise dB(A) 52/54 54/56 58/60 58/60 58/60 62/64 62/64 62/64
Temperature setting range and control accuracy 18~25℃±1℃
Humidity setting range and control accuracy 45~65%±5%
power 220V/~/50Hz Three-phase380V/~/50Hz
Refrigerant R410A
Evaporator Copper tube finned
throttling mode Electronic expansion valve



Wine Cellar Cabinet Type Air Conditioner Combined Frequency Conversion 0



Wine Cellar Cabinet Type Air Conditioner Combined Frequency Conversion 1
