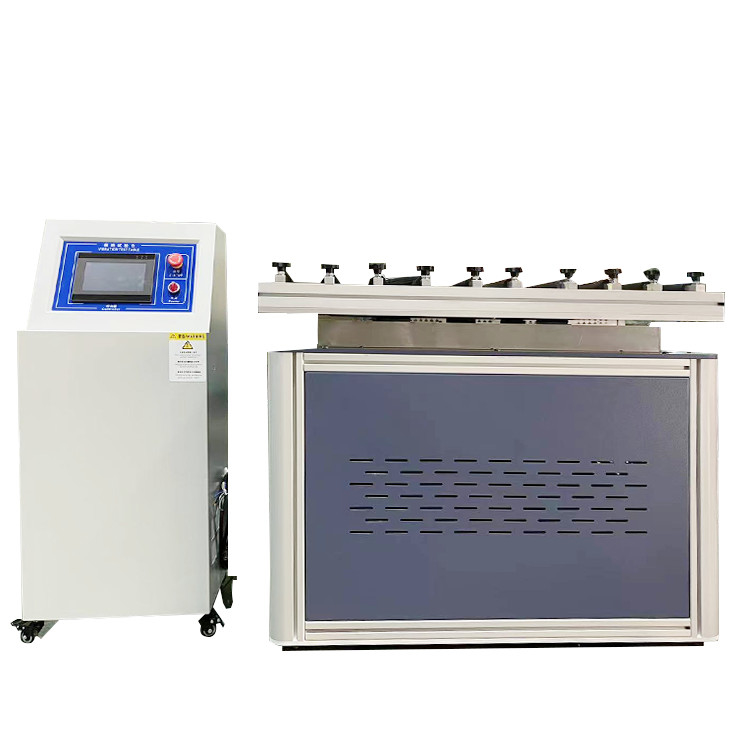

Amplitude 0.001-5Mm Vibration Test Table Maximum Acceleration 20g

Amplitude 0.001-5Mm Vibration Test Table Maximum Acceleration 20g
Amplitude 0.001-5Mm Vibration Test Table Maximum Acceleration 20g Amplitude 0.001-5Mm Vibration Test Table Maximum Acceleration 20g Amplitude 0.001-5Mm Vibration Test Table Maximum Acceleration 20g

Large Image :  Amplitude 0.001-5Mm Vibration Test Table Maximum Acceleration 20g

Product Details:
Place of Origin: China
Brand Name: lixian
Certification: CE
Model Number: HZ-4006A
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiate
Packaging Details: wood
Delivery Time: 7 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: negotiate

Amplitude 0.001-5Mm Vibration Test Table Maximum Acceleration 20g

Description
MODEL: HZ-4006A Standard: ISO 2247 ISO 13355
Frequency Modulation Range (Hz): 1~600 Maximum Acceleration: <20g
Amplitude (mm): 0.001-5 (Note: It Can Be Displayed Only After Adding Amplitude Sensor) Excitation Mode: Electromagnetic Type
Vibration Waveform: Sine Wave Test Mode: Fixed Frequency, Sweep Frequency, Frequency Doubling, Program, Logarithm, Random
High Light:

Electromagnetic Packaging Testing Instruments

,

5Mm Vibration Test Table

,

20g Vibration Test Table

Packaging Testing Instruments Vibration Test Table Amplitude 0.001-5 Mm Maximum Acceleration <20g

Vibration Test Table Equipment summary:
HZ-4006A Electromagnetic Vibration Table (Triaxial Direction) is suitable for electronic, electromechanical, optical communications, packaging, auto parts, toys and other industry research, development, quality control and manufacturing. quality control inspection and production line, assembly line. It is more suitable for quality inspection of finished product for improving product quality. It is more suitable for quality inspection of finished product for improving product quality.

Vibration Test Table Standard
ISO 2247 packaging Full shipping packages and unit goods Fixed low frequency vibration test
ISO 13355 packaging - full, filled transport packaging and unit load - Vertical random vibration test
IEC 60068 basic environmental test procedures
ASTM d999 test method for vibration testing of shipping containers
ASTM d4728 random vibration test method for shipping containers
ASTM d3580 standard for product vibration test (vertical linear motion)
GB / T 4857 packaging - Basic tests for transport packages
GB / T 2423 environmental test for electric and electronic products

Vibration Test Table Software functions:
The independently developed CIMS + FCS is adopted for the shaking table software system, which can be expanded and configured with acceleration sensor and PC monitoring. The latest international vibration test standards are quoted to realize the selection of fixed frequency, sweep frequency, frequency doubling, program, logarithm and random vibration modes.

Vibration Test Table​ Features
1. X, y and Z axis vibration can be realized on the same table, with program control, accurate and balanced frequency, and no drift during long-term operation;
2. With single point, segment and multi segment time timing;
3. Stepless amplitude adjustment, with frequency sweeping and frequency fixing functions, to meet the test requirements of different industries;
4. Embedded amplitude prediction program, four point synchronous excitation, uniform table vibration;
5. The anti-interference circuit is added to solve the interference of strong electromagnetic field to the control circuit, and the table top is non-magnetic and static.
6. It is made of composite industrial materials, precision processing, beautiful and generous platform, humanized operation and control, and adopts special measurement and control module to make the equipment work more stable.

Vibration Test Table Technical Parameters
Product model 4006A
Frequency modulation range (Hz) 1~600
Product load (kg) 50kg (customized if larger)
Frequency accuracy 0.01 Hz
Maximum acceleration <20g
control mode Industrial touch screen
Amplitude (mm) 0.001-5 (Note: it can be displayed only after adding amplitude sensor)
Excitation mode Electromagnetic type
Amplitude modulation mode Electronic amplitude modulation
Vibration direction Triaxial (x + y + Z)
Vibration waveform sine wave
Test mode Fixed frequency, sweep frequency, frequency doubling, program, logarithm, random
Time setting range 0-9999h / M / s minute arbitrary setting
Number of cycles 0-9999 arbitrary setting
Table size (mm) (W)500 × (D) 500 (one out of three) ;(W) 750 × (D)750;(W)1000 × (D)1000

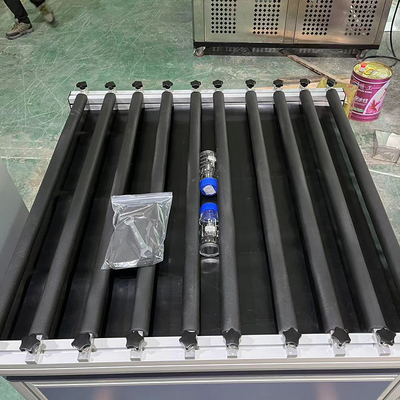

Amplitude 0.001-5Mm Vibration Test Table Maximum Acceleration 20g 0

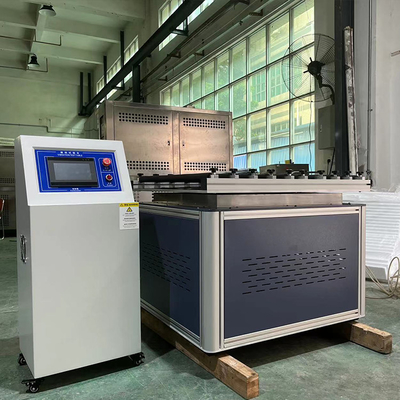

Amplitude 0.001-5Mm Vibration Test Table Maximum Acceleration 20g 1
