Product Details:
|
Temperature Range: | -70°C ~ 150°C | Heating / cooling time: | About 4.0°C/min; About 1.0°C/min (5~10°C/mm Is The Specific Condition) |
---|---|---|---|
Control System: | Intelligent Control System | Safety Protection: | High Safety Protection |
Control Mode: | Touch Screen | Display Mode: | LCD |
Humidity Accuracy: | ±3%RH | Humidity Range: | 20~98%RH |
Humidity Resolution: | 0.1%RH | Humidity Uniformity: | ±3%RH |
Power Supply: | AC220V/50Hz | Temperature Accuracy: | ±0.5℃ |
Temperature Resolution: | 0.1℃ | Temperature Uniformity: | ±2℃ |
Highlight: | Frequency Conversion Climate Test Cabinet,AC220V Climate Test Cabinet,Climate Corresponding Test Cabinet |
Temperature And Humidity Test Chamber Equipment summary:The machine is applied to test the materials in heat-resistance, cold-resistance, dry-resistance, moisture-resistance. It is simple to operate and program easy to edit. It can show the set values and operative time.
Temperature And Humidity Test Chamber technical parameter

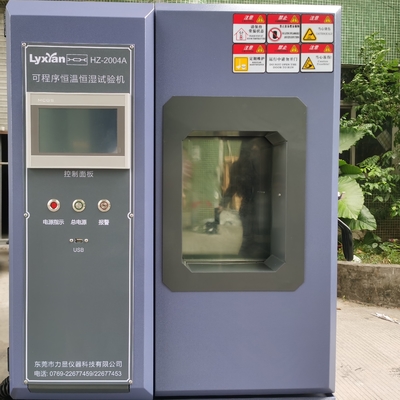

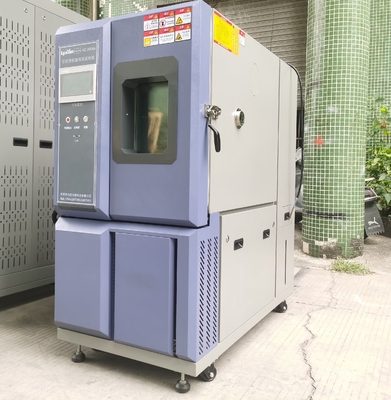

Model | (HZ-2004A)80-1000 Frequency Conversion Climate Test Cabinet |
Temperature range | -70 degree ~ +100(150) degree |
Humidity range | 20%~98%R.H. |
Accuracy/ uniformly | ±0.1 degree ±0.1%R.H./ ±1.0 degree ±3.0%R.H. |
Accuracy / volatility | ±1.0 degree ±2.0%R.H. / ±0.5 degree ±2.0%R.H. |
Heating / cooling time |
About 4.0/min(heat),about 1.0/min(cool) ( 5~10/mm is the specific condition ) |

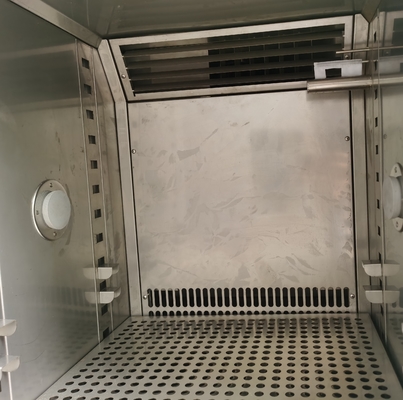

Inside material | Stainless steel SUS 304 # |
Insulation material | High-temperature high-density amino acid ethyl ester foam insulation materials, |
Cooling system |
Air-cooled/ single-stage compressor(-20 degree) , wind, water cooled/two-stage compressor(-40~-70 degree) |
Protection |
compressor overload switch, high and low pressure protection switch, over-humidity-temperature protection switches, fuses, warning system |
Accessories |
recorder(purchase), view window, 50mm testing hole, PL lamp, clapboard, Dry and wet gauze ball |
Temperature And Humidity Test Chamber Applicable industries:
Applied to control the product quality, such as electronic, plastic products, electrical appliances, instruments, food, vehicles, metals, chemicals, building materials, aerospace, medical care and so on.
Temperature And Humidity Test Chamber Corresponding standard:
1. International Electrotechnical Commission Standard:
IEC68-2-03_test method Ca_Steady damp-heat
IEC68-2-01_test method A_cold
IEC68-2-02_test method B_dry heat
2. USA Semiconductor Industry Standard:
JESD22-A101-B-2004 Constant temperature and humidity test
JESD22-A103-C-2004 High Temperature Storage Test
JESD22-A119-2004 Low Temperature Storage Test
3. Japanese Industrial Standard:
JIS C60068-2-3-1987 test method Ca: Steady damp-heat
JIS C60068-2-2-1995 test method B:dry heat
JIS C60068-2-1-1995 test method A:low temperature
