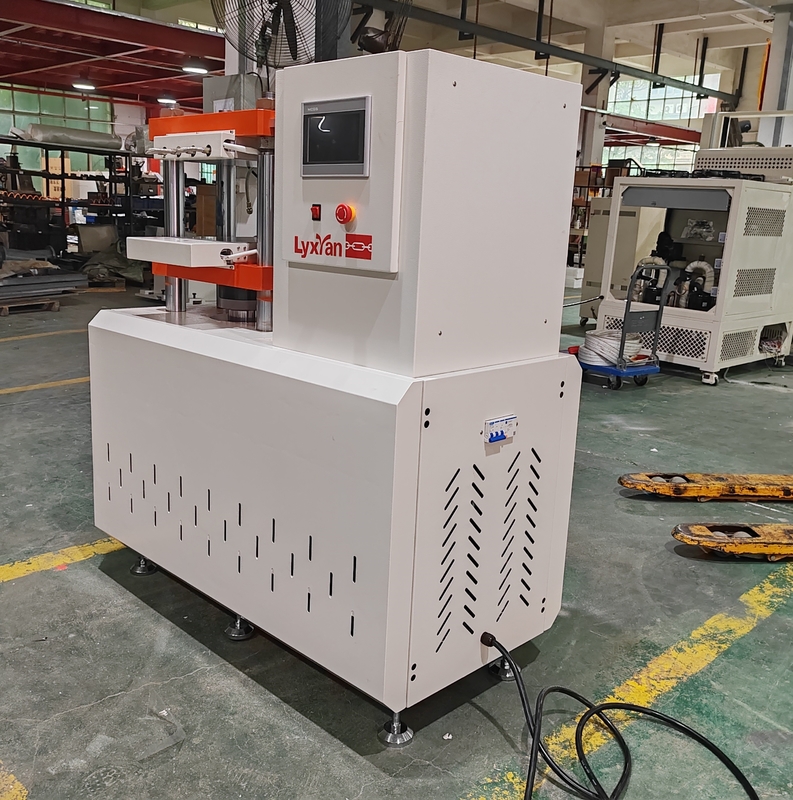

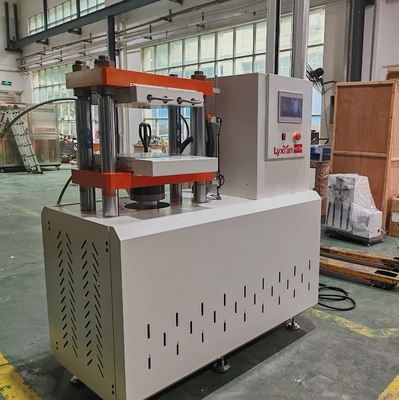

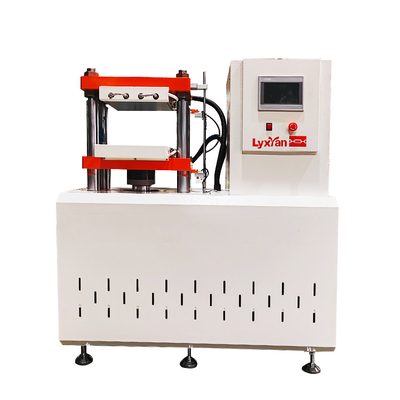

Electric Flat Vulcanizing Rubber Testing Machine 200kg/Sq.Cm Digital Display

Certification
China Dongguan Lixian Instrument Scientific Co.,LTD certification
China Dongguan Lixian Instrument Scientific Co.,LTD certification
I'm Online Chat Now

Electric Flat Vulcanizing Rubber Testing Machine 200kg/Sq.Cm Digital Display

Electric Flat Vulcanizing Rubber Testing Machine 200kg/Sq.Cm Digital Display
Electric Flat Vulcanizing Rubber Testing Machine 200kg/Sq.Cm Digital Display
Electric Flat Vulcanizing Rubber Testing Machine 200kg/Sq.Cm Digital Display Electric Flat Vulcanizing Rubber Testing Machine 200kg/Sq.Cm Digital Display Electric Flat Vulcanizing Rubber Testing Machine 200kg/Sq.Cm Digital Display Electric Flat Vulcanizing Rubber Testing Machine 200kg/Sq.Cm Digital Display

Large Image :  Electric Flat Vulcanizing Rubber Testing Machine 200kg/Sq.Cm Digital Display

Product Details:
Place of Origin: China
Brand Name: Lixian
Certification: CE/ISO
Model Number: HZ-7014
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 2000~5000/ per set
Packaging Details: Standard export wooden case
Delivery Time: 5~8 days
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 500 sets/per month

Electric Flat Vulcanizing Rubber Testing Machine 200kg/Sq.Cm Digital Display

Description
Temperature Range: Normal Temperature~300℃ Temperature Precision: ±2℃
Temperature Controller: LED Button Type Control Mode And PLC Touch-screen Programmed Control Mode The Way Of Heating: Electric Heating
Heating Up Time: Normal Temperature~160℃ About 20min Heating Plate Size: 350x350mm,500x500mm,1m*1m
The Max.distance Between Up And Lower Heating Plate: 300,500mm,800mm Cylinder Stroke: Max 250mm
Cylinder Speed: 11mm/s Pressure Gauge: 0~200kg/sq.cm
Dimension: 2*1.5*2.5(m) Motor Power: 4KW
Control System: Computer Display: LCD
Load Capacity: 100T Name: Rubber Testing Machine
Power Supply: 220V Weight: 2500kg
High Light:

Electric Flat Vulcanizing Rubber Testing Machine

,

200kg/Sq.Cm Rubber Testing Machine

,

Digital Display rubber tensile testing machine

Rubber Testing Machine Electric Flat Vulcanizing 80T Pressure Gauge 0~200kg/Sq.Cm Digital Display Temperature 300℃

Flat Vulcanizing Machine Equipment Description

This series of flat vulcanizing machine is the main equipment that can be used in pressing all kinds of rubber model product and non-model product. In addition, it also can be used in pressing all kinds of thermosetting plastic and foaming rubber and plastic product. With independent actuating unit and electric system, apply button centralized control. Within certain limits, working pressure and heating temperature can be adjusted.

Flat Vulcanizing Machine  Technical Parameter

Capacity

10T, 20T, 30T, 50T, 80T,100T
Temperature range Normal temperature~300℃
Temperature precision ±2℃
Temperature controller LED button type control mode and PLC touch-screen programmed control mode
The way of heating Electric heating
Heating up time Normal temperature~160℃ about 20min
Timer LED display or PLC touch-screen displayer
Heating plate size 350x350mm,500x500mm,1m*1m
The number of heating plate layers Single-layer
Exhaust function Low pressure automatically exhaust 3~10 times per minute (Adjustable)
Cylinder stroke Max 250mm
Cylinder speed 11mm/s
Pressure gauge 0~200kg/sq.cm
Dimension 2*1.5*2.5(m)
Pressure 380V/60HZ(or 50HZ)



This kind of model, can be classified manual operate and semi-automatic operate. The flat vulcanizing machine with the function of a high degree of automation, easy operation,energy conservation and environment protection, and also superior performance.

Flat Vulcanizing Machine  Main Features

  • Controlled by PC or manual, performance reliable, high degree of automation. Can automatically identify the wrong command,so avoid the accidence which caused by wrong operation.
  • With the function of timing open mold, automatically exhaust and reinforcing pressure,etc.
  • Optional: Manual operating or Automatic operating mode
  • Electrical heating pressing machine apply digital display(or pointed type) to control temperature, and control and display the heating plate temperature.
  • Electric Flat Vulcanizing Rubber Testing Machine 200kg/Sq.Cm Digital Display 0
  • Flat Vulcanizing Machine-new HZ-7014A.pdf
