Thermal Transition Reliability Test Chamber 2-Zone IEC68-2-14 Customized

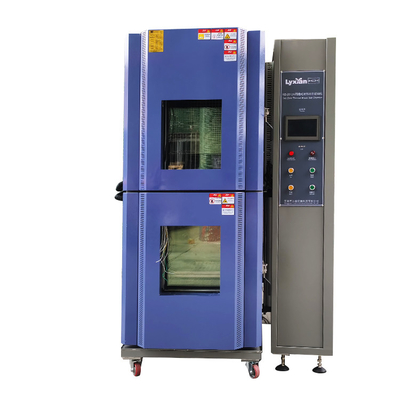

Large Image : Thermal Transition Reliability Test Chamber 2-Zone IEC68-2-14 Customized

Product Details:

Place of Origin:	China
Brand Name:	lixian
Certification:	CE
Model Number:	HZ-2012A

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	wood
Delivery Time:	7 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Contact Now

Thermal Transition Reliability Test Chamber 2-Zone IEC68-2-14 Customized

Description

Temprature Range:	-77 Degree ~+205 Degree	Size:	Customized Size
Corresponding Standard ：:	SJ/T10187-91Y73, SJ/T10186-91Y73, IEC68-2-14	Application:	Industry,Machinery Parts,Auto Part
Dimensions:	Customized Sizes	Service:	OEM ODM
Display:	LCD	Humidity Range:	10%~98%RH
Power Supply:	AC220V	Product Name:	Environmental Testing Machine
Temperature Accuracy:	±0.5°C	Test Modes:	Auto/Manual
Test Time:	0~999h
Highlight:	Customized Thermal Transition Reliability Test Chamber , IEC68-2-14 Thermal Transition Test Chamber , 2Zone Thermal Transition Test Chamber

Temperature Thermal Shock Environmental Test Chamber Climatic Test Chamber For Reliability Test -77 Degree ~+205 Degree

Thermal Shock Test Chamber summary:

The thermal shock test chamber, also known as the high and low temperature impact test chamber, is known as the cold and thermal impact machine in Taiwan.

Thermal Shock Test Chamber Specification:

Model			HZ-2012 Water-cooled Thermal Shock Test Chamber
System			2-zone transition by vertical transfer of specimens
Performance *1	Test area	Hot exposure range	＋ 60℃ to ＋ 205℃
		Cold exposure range	−77℃ to 0℃
		Temp. fluctuation *2	± 1.0℃
	Hot chamber	Pre-heat upper limit	＋ 205℃
		Heat-up time *3	Within 90 min from ambient temp. to ＋ 200℃ (Setting: ＋ 205℃)
	Cold chamber	Pre-cool lower limit	−77℃
		Pull-down time *3	Within 90 min from ambient temp. to −77℃ (Setting: −77℃)
	Ambient recovery	Recovery conditions	・Hot exposure: ＋150℃ to max. ＋ 55℃ ・Ambient temp.: ＋ 23℃ ・Specimen: Plastic molded ICs, 10 kg
		Ambient temp. recovery time	Within 90 min
Test area			Shelf brackets on 2 levels (up to 4 baskets can be installed)
Elevating unit			Power slider (250W)
Noise level *10			Max. 65 dB
Exhaust heat rate			12600 kJ/h (3000 kcal/h)
Exhaust air volume			250 m3/h

Thermal Shock Test Chamber Main function:Used in electrical and electronic components, automation components, communication components, auto parts, metals, chemical materials, plastics, etc., defense industry, aerospace, military industry, BGA, PCB base board, electronic chip IC, semiconductor ceramics and polymer materials The physical change, testing the material's repeated tensile force against high and low temperature and chemical changes or physical damage of the product in thermal expansion and contraction, can confirm the quality of the product, from precision IC to heavy mechanical components, no one Ideal test tool without it.

Thermal Shock Test Chamber The difference between two boxes and three boxes:
The two slots are composed of a cold box and a hot box, the box does not move, and the sample is tested in the manner that the hanging bar is switched between the cold box and the hot box. The three tanks are composed of a cold box, a hot box and a test box, and are tested by means of air flow conversion of the object to be tested and the cold box and the hot box.

Thermal Shock Test Chamber Corresponding standard :
1,GB/T2423.1-1989
2,GB/T2423.2-1989
3,GB/T2423.22-1989
4,GJB150.5-86
5,GJB360.7-87

Thermal Shock Test Chamber Application industry:
Applicable to aviation, military, ship, electrician, electronics, instrumentation; medical equipment; civil nuclear energy; colleges and universities; research institutes; commodity inspection and arbitration, technical supervision departments; building materials ceramics; petrochemical products, complete machines and parts High and low temperature impact test.
