Horizontal Universal Tensile Testing Machine 10kn Capacity Electronic UTM Computer Control

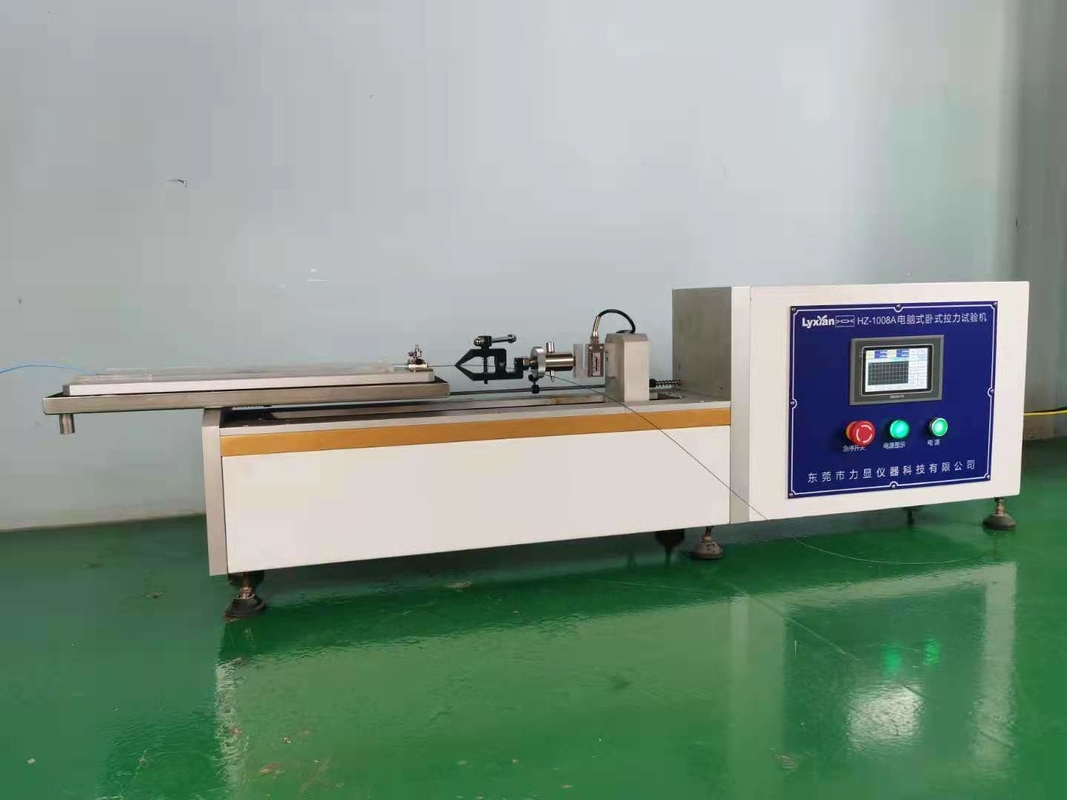

Large Image : Horizontal Universal Tensile Testing Machine 10kn Capacity Electronic UTM Computer Control

Product Details:

Place of Origin:	China
Brand Name:	lixian
Certification:	CE
Model Number:	HZ-1008

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiate
Packaging Details:	Standard safety export woodcase
Delivery Time:	7 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	200sets/ month

Contact Now

Horizontal Universal Tensile Testing Machine 10kn Capacity Electronic UTM Computer Control

Description

Max Load:	1ton	Force Rate:	150mm/min
Load Cell:	Basic Configuration：one Piece( Max Load)	Displacement Range:	0 ~ 600mm
Accuracy Of Displacement Measurement:	Tolerance: ±0.5%/ Tolerance: ±0.2%	Force Resolution:	1/±350,000 Of Max Force
Accuracy:	0.5%	Fixture:	A Set Of Tensile Fixture
Power Supply:	220V, 50HZ	Control System:	Computer Control System
Display:	LCD Display	Load Cell:	High Precision Load Cell
Test Speed:	0.1-500mm/min	Warranty:	1 Year
Highlight:	Horizontal Universal Tensile Testing Machine , 10kn Capacity Universal Tensile Testing Machine , Computer Control Universal Tensile Testing Machine

Horizontal Universal Tensile Testing Machine 10kn Capacity Electronic UTM with Computer Control

Horizontal Universal Testing Machine is a new material testing machine that combined with the electronic technology and mechanical transmission, it has accurate load speed, range of force measurement, Has high accuracy and sensitivity for theload, displacement measurement and control, This series of machine using single-space structure, operational spaceat the bottom, it is mainly applied to test non-metallic and metallic material which the load is less than1KN, ithas the parameters, such as stress, strain, control mode of displacement ,calculated max force, tensilestrength, bending strength, compressive strength, elastic modulus, rate of elongation, yield strength and others.

Horizontal Universal Testing Machine Specification

Model Number	HZ-1008
Power	Electronic
Product name	Horizontal Testing Machine
Max. Force	10kN
Accuracy	1grade
Force range	1% ~ 100% FS
Force accuracy	±1% of reading
Force resolution	1/±350,000 of max force
Force rate	150mm/min
Displacement range	0 ~ 600mm
Displacement accuracy	±0.1mm
Piston Stroke	1500mm

Universal Testing Machine Fixture

Tensile machine grips is an indispensable part of the universal test machine. Different materials need different fixture, is also a significant factor whether the test can be carried out smoothly and the accuracy of the test results. Tension testing machine fixture is an indispensable part of electronic tension testing machine. Through the fixture clamping sample for the specimen after force, the size of the test force that the fixture can bear is a very significant index of the fixture. It determines the size of the fixture structure and the size of the labor intensity of the fixture operation. Tensile testing machine fixture in the structure of no fixed mode, according to different samples and test force size, in the structure of a great difference. The company provides tensile machine grips custom services to customers around the world and export UTM for 23year.

Horizontal Tensile Test Machine 10KN HZ-1008.pdf

Tag:

Contact Person: liang

Tel: 8613711888650

Fax: 86--13827265866
