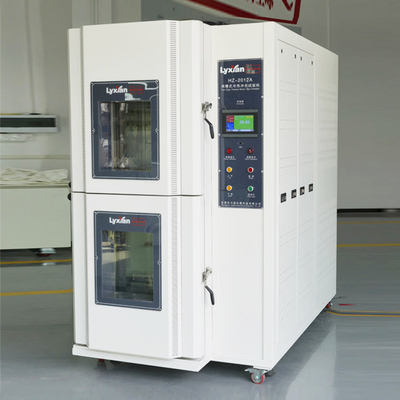

Thermal Shock Cycling Testing Chamber For Phone Electronic Product Aging Test Iec 60068-2-14 Max 65 Db

Certification
China Dongguan Lixian Instrument Scientific Co.,LTD certification
China Dongguan Lixian Instrument Scientific Co.,LTD certification
I'm Online Chat Now

Thermal Shock Cycling Testing Chamber For Phone Electronic Product Aging Test Iec 60068-2-14 Max 65 Db

Thermal Shock Cycling Testing Chamber For Phone Electronic Product Aging Test Iec 60068-2-14 Max 65 Db
Thermal Shock Cycling Testing Chamber For Phone Electronic Product Aging Test Iec 60068-2-14 Max 65 Db
Thermal Shock Cycling Testing Chamber For Phone Electronic Product Aging Test Iec 60068-2-14 Max 65 Db Thermal Shock Cycling Testing Chamber For Phone Electronic Product Aging Test Iec 60068-2-14 Max 65 Db Thermal Shock Cycling Testing Chamber For Phone Electronic Product Aging Test Iec 60068-2-14 Max 65 Db Thermal Shock Cycling Testing Chamber For Phone Electronic Product Aging Test Iec 60068-2-14 Max 65 Db Thermal Shock Cycling Testing Chamber For Phone Electronic Product Aging Test Iec 60068-2-14 Max 65 Db

Large Image :  Thermal Shock Cycling Testing Chamber For Phone Electronic Product Aging Test Iec 60068-2-14 Max 65 Db

Product Details:
Place of Origin: DONGGUAN
Brand Name: lixian
Certification: CE
Model Number: HZ-2012A
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiate
Packaging Details: wooden
Delivery Time: 7 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500hundred sets per month

Thermal Shock Cycling Testing Chamber For Phone Electronic Product Aging Test Iec 60068-2-14 Max 65 Db

Description
Temprature Range: -77 ~+205 Degree Standard: ASTM AISI DIN BS,DIN,BS,ASTM,ISO
System: 2-zone Transition Cooling Method: WATER Cooling
Safety Protection: Over Temperature Protection Power Supply: 220V/50HZ
Humidity Accuracy: ±3%RH Humidity Control: ±2%RH
Humidity Range: 20~98%RH Product Name: Thermal Shock Chamber
Service Life: 1 Year Temperature Resolution: 0.1℃
Humidity Uniformity: ±3.0%RH Test Environment: Stable
Warranty: 1 Year Display: LCD Display
Test Chamber Size: 500 Mm X 500 Mm X 500 Mm Temperature Stability: ±0.5℃
Color: White/BLACK
High Light:

Phone Thermal Shock Cycling Testing Chamber

,

Thermal Shock Cycling Testing Chamber

Temperature Thermal Shock Chamber IEC 60068-2-14:2009 Test Standard -77 Degree ~+205 Degree

Two Boxes Air-cooled Hot and Cold Thermal Testing ...



The thermal shock test chamber,The test chamber is a well-insulated enclosure that houses the specimen or product undergoing thermal shock testing. It is designed to withstand high and low temperatures and prevent temperature leakage to maintain the desired test conditions. also known as the high and low temperature impact test chamber, is known as the cold and thermal impact machine in Taiwan.
Model
HZ-2012
System
2-zone transition
Performance *1

Test area
Hot exposure range
+ 60℃ to + 205℃
Cold exposure range
−77℃ to 0℃
Temp. fluctuation *2
± 1.0℃
Hot chamber
Pre-heat upper limit
+ 205℃
Heat-up time *3
Within 90 min from ambient temp.
to + 200℃ (Setting: + 205℃)
Cold chamber
Pre-cool lower limit
−77℃
Pull-down time *3
Within 90 min from ambient temp. to −77℃ (Setting: −77℃)
Test area
Shelf brackets on 2 levels (up to 4 baskets can be installed)
Elevating unit
Power slider (250W)
Noise level *10
Max. 65 dB
Exhaust heat rate
12600 kJ/h
Exhaust air volume
250 m3/h
Thermal Shock Chamber  Main function:
Used in electrical and electronic components, automation components, communication components, auto parts, metals, chemical materials, plastics, etc., defense industry, aerospace, military industry, BGA, PCB base board, electronic chip IC, semiconductor ceramics and polymer materials The physical change

Thermal Shock Chamber  Application industry:
Applicable to aviation, military, technical supervision departments; building materials ceramics;ship, electrician, electronics, instrumentation; medical equipment; civil nuclear energy; colleges and universities; research institutes; commodity inspection and arbitration, petrochemical products, complete machines and parts High and low temperature impact test.
Thermal Shock Cycling Testing Chamber For Phone Electronic Product Aging Test Iec 60068-2-14 Max 65 Db 0
Thermal Shock Cycling Testing Chamber For Phone Electronic Product Aging Test Iec 60068-2-14 Max 65 Db 1
Thermal Shock Cycling Testing Chamber For Phone Electronic Product Aging Test Iec 60068-2-14 Max 65 Db 2
Thermal Shock Cycling Testing Chamber For Phone Electronic Product Aging Test Iec 60068-2-14 Max 65 Db 3
Thermal Shock Cycling Testing Chamber For Phone Electronic Product Aging Test Iec 60068-2-14 Max 65 Db 4
Thermal Shock Cycling Testing Chamber For Phone Electronic Product Aging Test Iec 60068-2-14 Max 65 Db 5
Thermal Shock Cycling Testing Chamber For Phone Electronic Product Aging Test Iec 60068-2-14 Max 65 Db 6
